Description

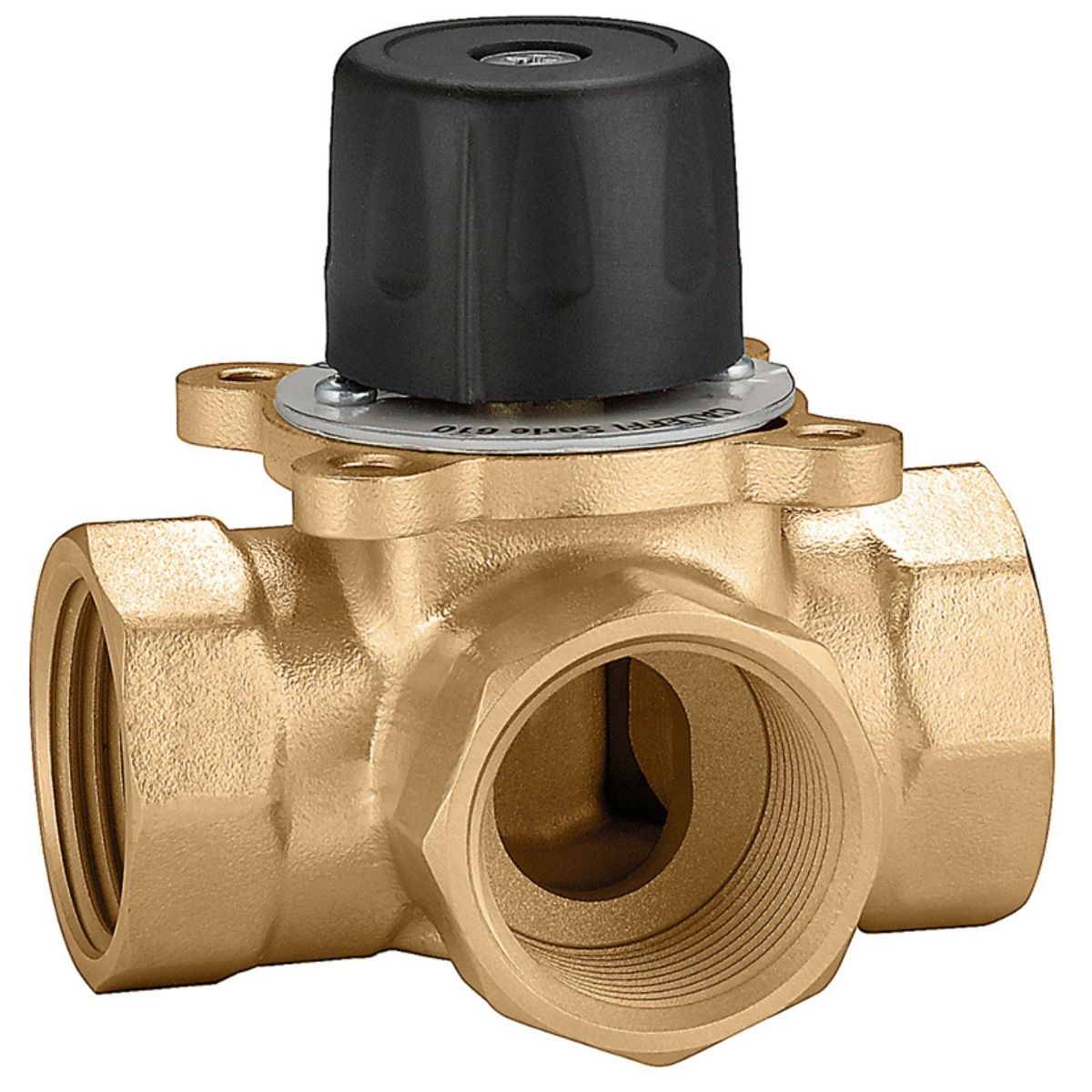

Mixing valves are a solution for managing the temperature in centralized heating systems. This valve mixes the hot water coming from the boiler with the water returning from the system, in order to reach the desired temperature for the flow, also adapting to changes in temperature. Thanks to this adjustment, the mixing valve allows us to optimize energy consumption.
This valve is supplied with a manual knob. To motorize it, the appropriate 6370 servomotors are needed.
Datasheet
• Body: brass UNI EN 12165 CW617N
• Control rod and rotor: brass UNI EN 12165 CW617N
• Knob: PA6-GF30
• Position indicator: aluminum
• Seals: EPDM, FKM
Performance• Fluids used: water, glycol solutions
• Maximum percentage of glycol: 50 %
• Max. operating pressure: 10 bar
• Max. differential pressure: 1 bar (mixing) 2 bar (deviation)
• Operating temperature range: 5÷110 °C
• Leakage (Δp=1 bar): ≤0.5 % Kvs (EN12226-1)
• Connections: Rp 1/2" ÷ Rp 2" (EN10226-1)
• Kvs: 80 Nm
