Description

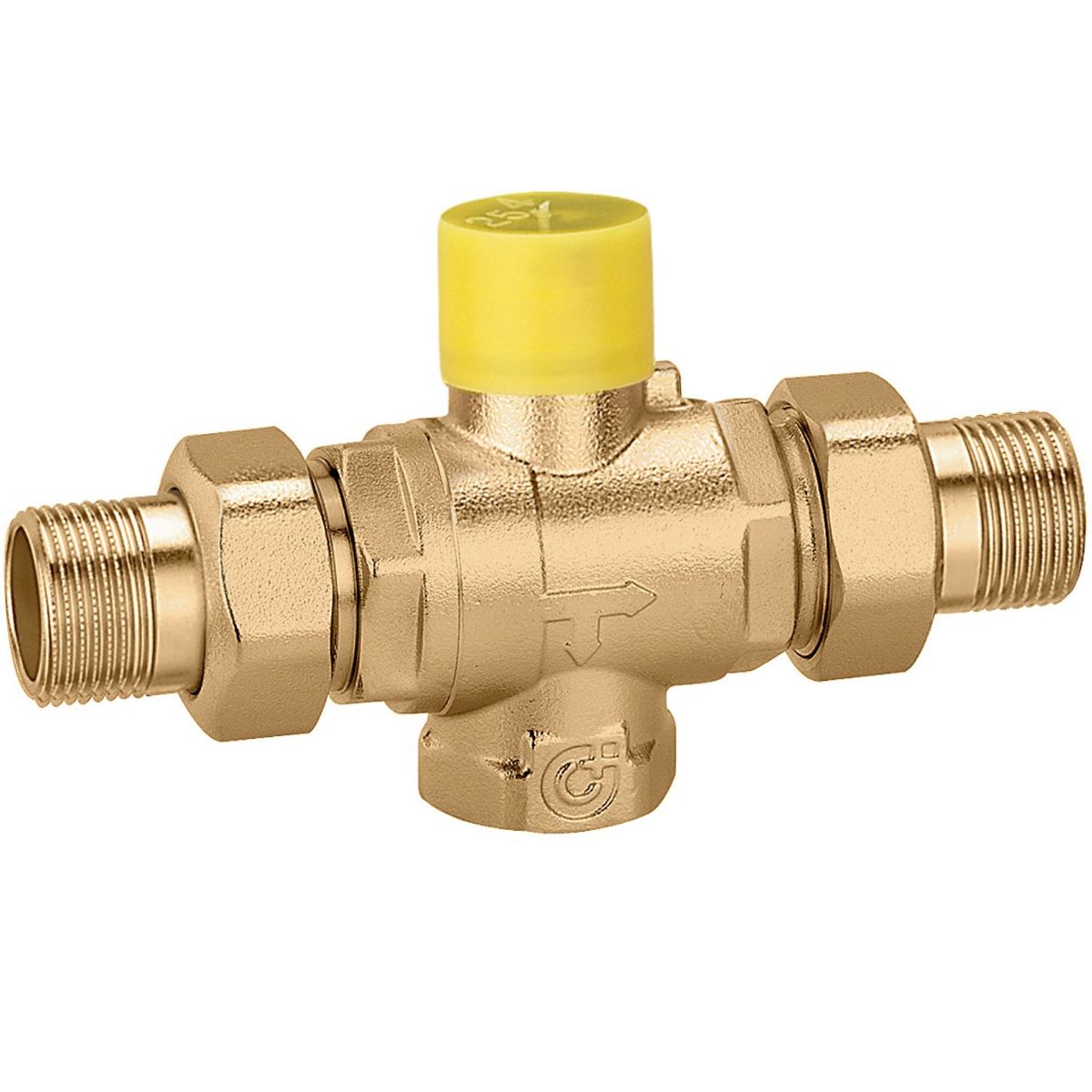

Zone valves are components that have the task of automatically regulating the flow of water in the system, to improve environmental comfort and energy efficiency.
It is particularly suitable when precise temperature control is required in multiple zones, and thanks to its ability to intercept and manage the flow of fluid in the system, it allows us to maintain the ideal temperature in the different zones, avoiding energy waste and improving overall efficiency.
NOTE: the 6460 model motor must be added
Datasheet
• Body: brass UNI EN 12165 CW617N
• Ball: brass UNI EN 12165 CW617N, chrome-plated
• Ball seal: PTFE with EPDM O-Ring
• Control rod seal: double EPDM O-Ring
• Nozzle seal: EPDM O-Ring
Performance• Fluids used: water, glycol solutions
• Max. percentage of glycol: 50%
• Maximum operating pressure: 10 bar
• Operating temperature range: -5÷110°C
• Maximum differential pressure: 10 bar
Properties
