Description

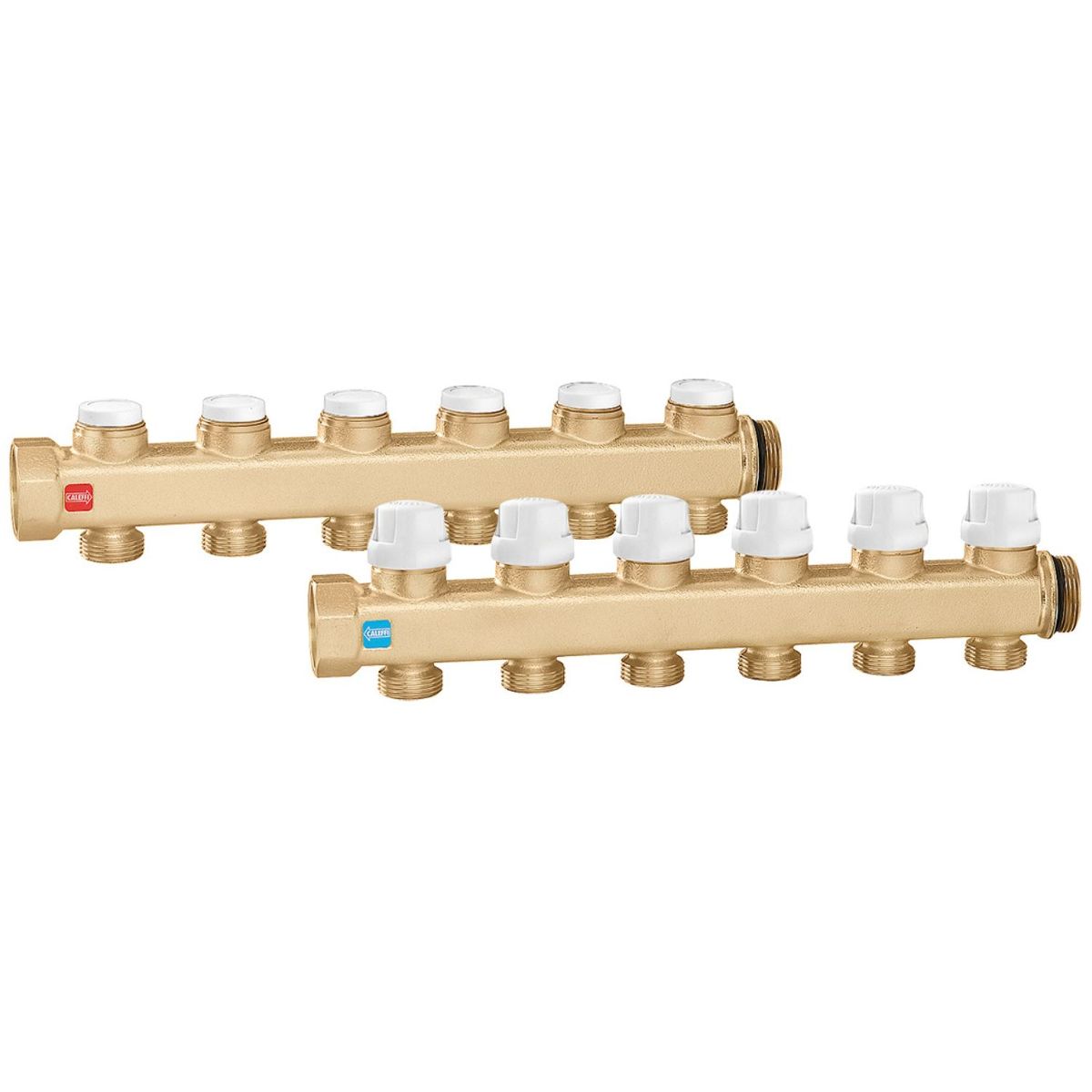

A kit already complete with 1" brass flow and return manifold with 4 3/4"M ways complete with shut-off valves and flow rate pre-regulation lockshields.
Derivative centre distance: 50 mm
Datasheet
• Delivery manifold brass EN 1982 CB753S, lockshield adjustment with 5 mm hex key
• Return manifold brass EN 1982 CB753S
• Fluids used: water, glycol solutions
• Max. percentage of glycol: 30%
• Max. operating pressure: 10 bar
• Operating temperature range: 5÷100°C
• Main connections: 1” F (ISO 228-1)
• Branches: 3/4” M - Ø 18
• Center distance: 50 mm
