Description

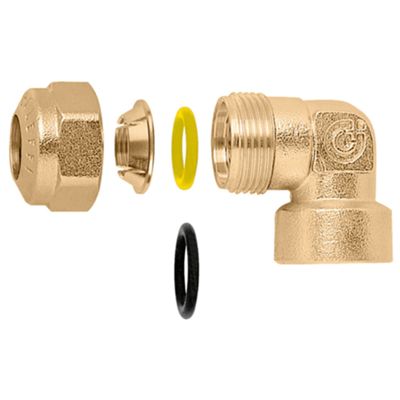

Mechanical elbow fitting with double O-Ring for annealed copper, raw copper, brass, mild steel and stainless steel pipes.
Pipe diameter: Ø 18
Connection: G 3/4" F
For gas and fluid hydrocarbon systems (yellow O-Ring compliant with EN 549)
For hydraulic and sanitary systems (black O-Ring compliant with EN 681.1)
Datasheet
• Cap and fitting: brass EN 12165 CW617N
• Hose clamp: brass EN 12164 CW614N - brass EN 12165 CW617N (Ø 22 mm)
• Max. operating pressure: according to uses permitted by regulations
• Temperature range: -15–50 °C
• Hydraulic seals Black O-Ring: EPDM for hydraulic systems and drinking water Compliant with EN 681.1 standard
• Fluids used: water, glycol solutions
• Max. percentage of glycol: 30 %
• Max. operating pressure: 16 bar
• Temperature range: -25–120 °C
• Minimum tightening torque: Ø 8– Ø 18 mm: 25 N m; Ø 22 mm: 35 N m; Ø 28 mm: 50 N m
• Pipe material: annealed copper R 220; raw copper R 290; brass; mild steel; stainless steel
• Compliant with the standard: - EN 1254-2; series 903, 913, 9050, 906 - EN 1254-4; series 900, 904, 9057, 9058, 9067, 9068, 610, 914, 930
