Description

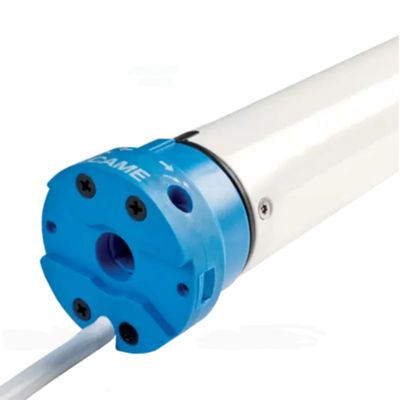

The CAME 001UY0020 Mondrian 5 kit is designed for the automation of roller shutters with loads up to 92 kg.
It includes a 50 Nm tubular motor with adjustable mechanical limit switch, compatible with Ø50 mm round or octagonal tubes.
The scope of delivery includes a Ø60 mm octagonal adapter, a Q10 safety insert and a 48 mm centre distance omega bracket with Q10 seat, which simplifies fixing in standard applications.
Reliable, silent and compact, the kit is ideal for residential and commercial systems.
Datasheet
• Model 001UY0064
• Tubular motor kit type for roller shutters
• Mondrian 5 50 Nm motor
• Power supply 230 V AC – 50 Hz
• Power consumption 205 W
• Rotation speed 15 rpm
• Rated torque 50 Nm (up to 92 kg)
• Adjustable mechanical limit switch
• IP44 protection rating
• Engine length approx. 523 mm
• External diameter 45 mm (motor body)
• Compatible with Ø50 round and octagonal tubes
Package Contents:
• CAME Mondrian 5 50 Nm motor
• Octagonal adapter Ø60 (code 001YK5101)
• Q10 safety insert (code 001YM0105)
• Omega bracket, 48 mm centre distance, Q10 seat (code 001YM0014)
