Description

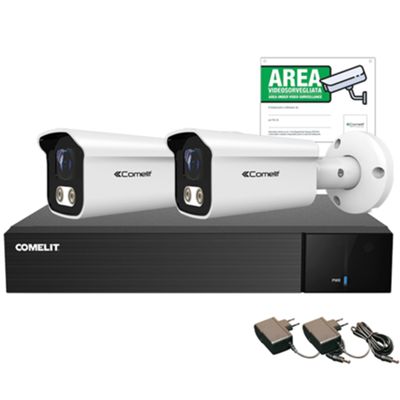

KIT COMPOSED OF:
1 AHDVR004N05A: Stand-alone 5-hybrid (AHD/TVI/CVI/CVBS/IP) digital video recorder, 4 analog video inputs and 2 IP video channels. H.264/H.265 compression. Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. 12V power supply included. This DVR connects to Comelit servers protected by AWS services.
2 AHBCAMS05FB: AHD/TVI/CVI/CVBS (960H) bullet camera, 5Mp resolution, 3.6mm fixed lens, IR LED with 25m range, DWDR 50dB, 12Vdc power supply, IP67 waterproof die-cast aluminum container.
Datasheet
AHDVR004N05A:
• Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
• Supplied hard disk capacity 1TB (10TB max)
• Recording methods Automatic, manual, scheduled, event
• Users connected at the same time 5
• Motion detection 396 zone
• Privacy zones 4
• Connections/Ports Type 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0
• Dimensions (WxHxD) 255 x 42 x 222 mm
• Operating temperature (°C) -10 ÷ 50
• Accessories supplied Power supply, Mouse
AHBCAMS05FB:
• 1/3'' CMOS Progressive scan camera sensor
• Lens type F2.0
• Horizontal field of view 76°
• Vertical field of view 43°
• AHD/TVI/CVI/CVBS (960H) video output
• Video resolution 1920x1080 (Full-HD 1080p), 2592x1944 (5MP), 4Mpx
• IP67 protection rating
• Dimensions (WxHxD) 72 x 66 x 175 mm
• Operating temperature (°C) -10 ÷ 50
