Description

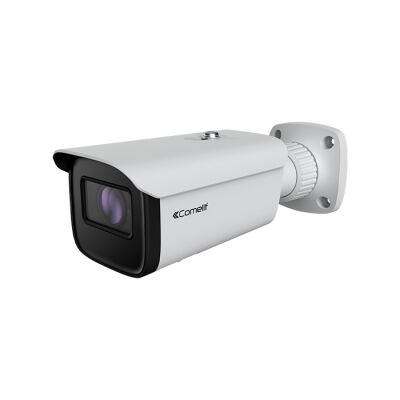

Advance series bullet IP camera with 2.8mm fixed lens, 4MP@30fps frame rate resolution, High frame rate function supported (2MP@60fps).
IR LED with 50 meters range (Smart IR) and high frame function (60fps) is only supported by Advance 32/64/128ch series NVR.
It has various video analysis functions such as scene change detection, abandoned/removed object function, heat map, face detection, video tampering detection, line crossing detection (human/vehicle distinction) and area entry/exit/intrusion detection (human/vehicle distinction). It also has the function of line and area human/vehicle counting, metadata analysis, parking restriction, loitering and audio anomaly.
WDR 120Db, SD card slot up to 256GB and Audio: 1 in with IP67 waterproof die-cast aluminum container, 12VDC/PoE IEEE802.3af power supply.
Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari.
Compatible accessories: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
Datasheet
• 1/3" CMOS sensor
• Resolution 2592 x 1520 (4MP)
• 2.8mm optics
• Frame rate 30fps; HFR mode 60fps
• LED illumination distance 50 m (Smart IR)
• Multi Streaming (3 Streaming)
• Integrated micro SD card slot (supports up to 256Gb)
• IP67 grade
• IK10 grade
• 12V power supply
• Operating temperature -30 °C ~ 60 °C < 95 % RH
• Dimensions (mm) 217.7 x 80.5 x 80.5
