Description

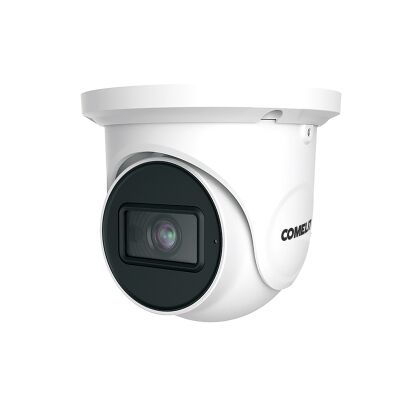

Next series turret IP camera with 2.8÷12 mm motorized lens, 4MP@30 fps resolution, IR LED with a range of 50 meters (Smart IR), ONVIF compatible. It has various video analysis functions such as area intrusion (people/vehicle distinction) and line crossing (people/vehicle distinction).
WDR 120Db, SD card slot up to 256GB and Audio: 1 in with built-in microphone and IP67 waterproof die-cast aluminum container, 12VDC/ PoE IEEE802.3af power supply.
Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari.
Compatible accessories: JBA-TVA, CMA-TVA, WMA-TVA, PMA-A, AMA-A, WMA-02A.
Datasheet
• 1/3" CMOS sensor
• Resolution 2560 x 1440 (4MP)
• 2.8-12mm lens, Motorized lens with autofocus
• LED illumination distance 50 m (Smart IR)
• BLC/DNR/HLC BLC/3D DNR/HLC
• Multi Streaming (3 Streaming)
• Integrated micro SD card slot (supports up to 256Gb)
• Audio Inputs/Outputs 1 CH audio input
• IP67 grade
• IK10 grade
• 12V power supply
• Operating temperature -30 °C ~ 60 °C < 95 % RH
• Dimensions (mm) 109.3 x 130.7 x 130.7
