Description

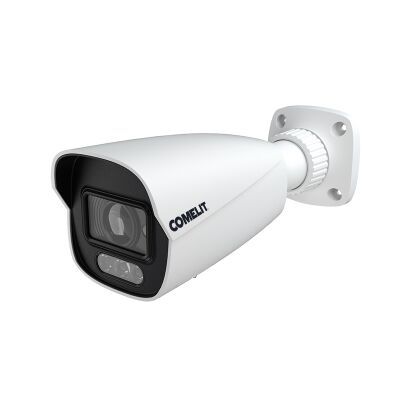

ColorUP Next series bullet IP camera, 2.8÷12 mm motorized lens, 4MP@30 fps resolution, Light LED with a range of 40 meters, IR LED with a range of 40 meters (Smart IR), ColorUp function (Light LED), Dual Light (IR+Light LED) and IR LED, ONVIF compatible.
It has various video analytics functions such as line crossing detection and area intrusion detection.
WDR 120Db, SD card slot up to 256GB, Audio: 1 in with built-in microphone and IP67 waterproof die-cast aluminum container, 12VDC/ PoE IEEE802.3af power supply.
Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari.
Compatible accessories: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
Datasheet
• 1/3" CMOS sensor
• Resolution 2560 x 1440 (4MP)
• 2.8-12mm, Motorized optics with autofocus
• LED illumination distance 30 m (Smart IR)
• BLC/DNR/HLC BLC/3D DNR/HLC
• Frame rate 30fps
• Multi Streaming (3 Streaming)
• Integrated micro SD card slot (supports up to 256Gb)
• Audio inputs/outputs 1 + Mic / 0
• IP67 grade
• IK10 grade
• 12V power supply
• Max absorption 10W
• Operating temperature -30 °C ~ 60 °C < 95 % RH
• Dimensions (mm) 217.8 x 80.5 x 80.3
