Description

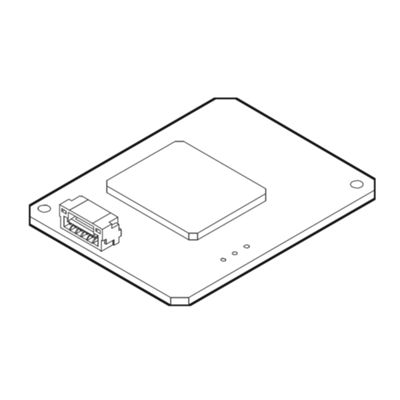

Wi-Fi card to be installed on each internal unit (compatible) to make it smart and controllable with the Onecta app.
Datasheet
• Radio type: Transceiver
• Operating frequency: 2412 MHz~2472 MHz
• Modulation: DSSS, OFDM
• Bandwidth and channel spacing: 20 MHz and 5 MHz
• Antenna type: Inverted F antenna
• Antenna gain: 1.6 dBi
• Clock frequency (maximum): 40 MHz
• Operating temperature: -10°C ~ +60°C
• Receiver category: Category 1
Package contents
• Installation manual
• Adapter for APP ONECTA
• Connection cable
• AAA.LR03 dry battery (alkaline) for user interface
• Wireless remote control system (user interface)
• Sticker with serial number (SSID, KEY)
