External unit for Daikin dual split air conditioner 6.5/8.2 kW with R32 gas included
Description

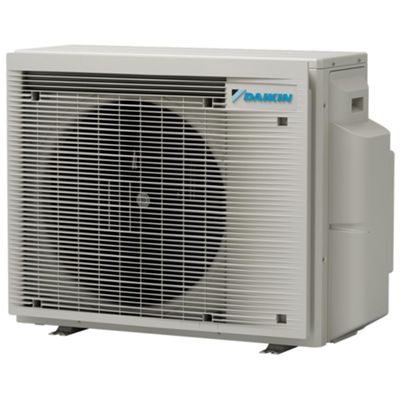

The Daikin 2MXM68A9 is a dual split outdoor unit designed to offer maximum comfort in every room of the home or office, in cooling and heating with reduced consumption. With the 2MXM68A9 outdoor unit it is possible to connect up to 2 indoor units (wall-mounted, floor-mounted, ducted or false ceiling) and they do not necessarily have to be installed in the same room or at the same time.
The outdoor unit is designed to work from -10°C to +46°C in cooling and from -15°C to +18°C in heating .
The use of R32 refrigerant gas helps the environment, contributing to lower energy consumption. The compact design makes it easy to install even in small spaces.
Nominal cooling capacity 6.5 kW
Nominal heating capacity 8.2 kW
Datasheet
• Type Dual split external unit
• Number of internal units supported 2
• Cooling capacity 6.5 kW
• Heating capacity 8.2 kW
• Refrigerant gas R32
• Dimensions (H x W x D) 73.4 x 97.4 x 40.8 cm
• Weight 60 kg
• Sound power level 61 dB(A) in cooling, 61 dB(A) in heating
• Operating range -10°C / +46°C in cooling; -15°C / +18°C in heating
• Maximum pipe length (per unit) 25 m
• Refrigerant - Precharge 2 Kg - TCO2 Eq 1.4 - GWP 675
Package Contents
• Daikin 2MXM68A9 outdoor unit
• User and installation manual
• Pipes, fittings and brackets not included
• Multilingual label for fluorinated greenhouse gases
