Description

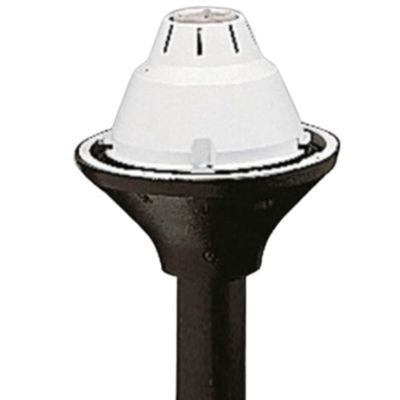

The Disano 1313 aluminium base is made of die-cast aluminium and includes a wiring cup. The painting is done by immersion in epoxy cataphoresis, giving the body high resistance to corrosion and salt spray.
The glass is treated with anaphoresis and UV-stabilized acrylic enamel to prevent yellowing, after phosphating treatment, while the wiring requires a 230V/50Hz power supply with flexible cable terminated with silicone insulation with fiberglass braid and a section of 1.5 mm².
The 2-pole terminal block supports conductors up to 4 mm², equipped with an aluminum ring with watertight gasket for fixing the speaker, this base is designed for mounting on poles or arms with a 60 mm diameter attachment.
Datasheet
• Material: die-cast aluminum
• Epoxy cataphoresis paint finish resistant to corrosion and salt spray
• Power supply 230V
• E27 lamp holder
• Maximum lamp power 100W
• Compatibility with 38 mm, 45 mm, 50 cm diameter speakers
• Mounting on pole or arm with 6 cm diameter attachment
• IP65 protection rating
• IK08 impact resistance
• Insulation class II
