Description

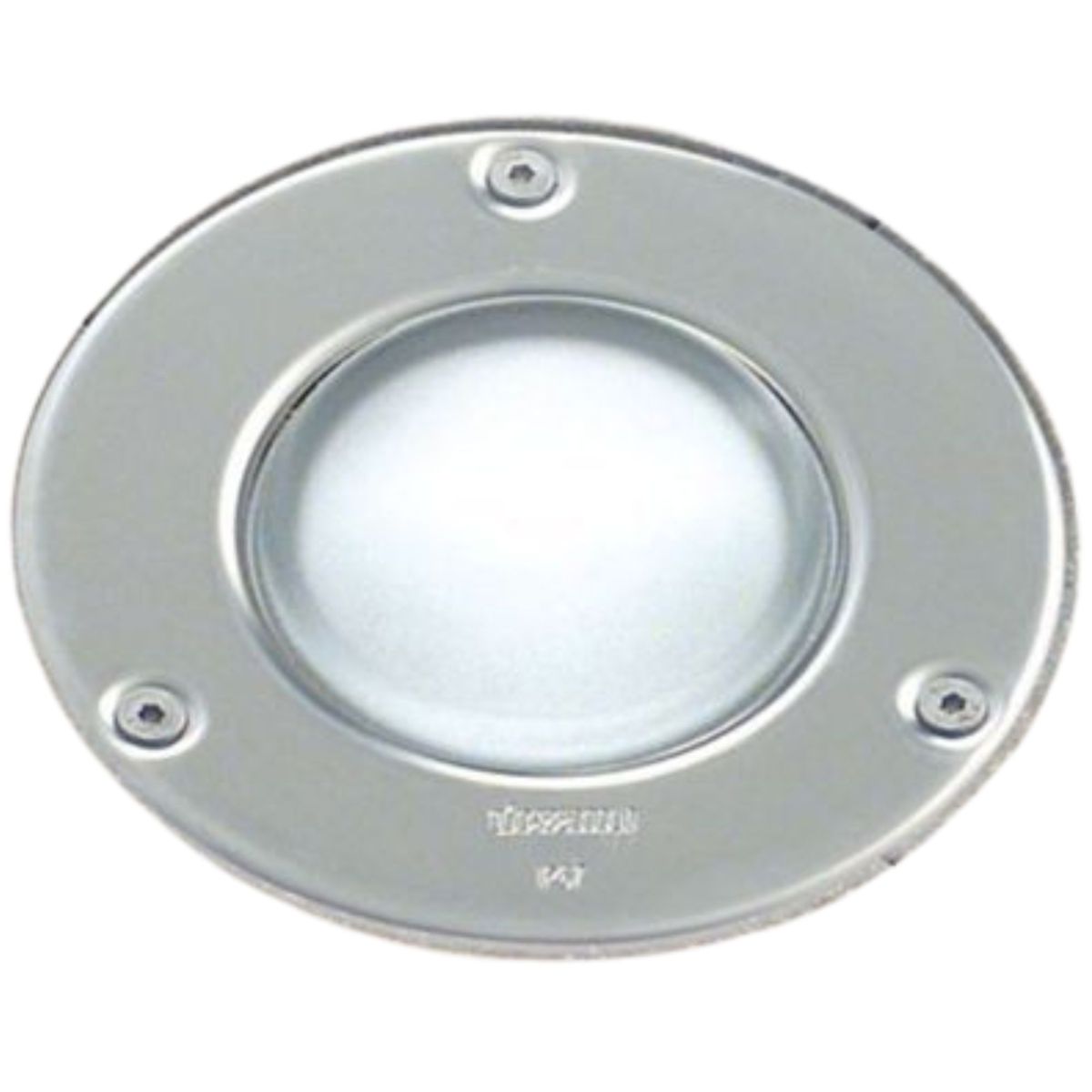

The Microfloor 1649 DICR 20 ALU S+L INOX is a recessed lighting fixture designed for outdoor applications, ideal for lighting paths, gardens and pedestrian areas, the body is made of nylon reinforced with glass fibre, a material that guarantees high mechanical resistance and durability over time.
The AISI 316 stainless steel frame offers effective protection against corrosion, making the spotlight suitable for use in outdoor environments exposed to adverse weather conditions.
The tempered glass diffuser is designed to resist thermal shock and impacts, ensuring uniform light diffusion and protecting the internal lamp, while the device is designed for use with a 20W DICR halogen lamp with GX5.3 fitting, operating at low voltage (12V), and requires an external transformer for power supply.
The IP67 protection rating indicates total protection against dust and temporary immersion in water, while the IK08 rating ensures good resistance to mechanical impacts.
For floor installation, we recommend using the floor formwork code 313, while for wall installation, we recommend the formwork code 314.
Datasheet
• Body material glass fiber reinforced nylon
• Frame material AISI 316 stainless steel
• Tempered glass diffuser
• Halogen lamp type DICR 20W
• GX5.3 lamp socket
• Nominal voltage 12V (external transformer required)
• IP67 protection rating
• Impact resistance grade IK08
• External diameter 120 mm
• Installation height/depth 86 mm
• Maximum supported load 2000 kg
