Description

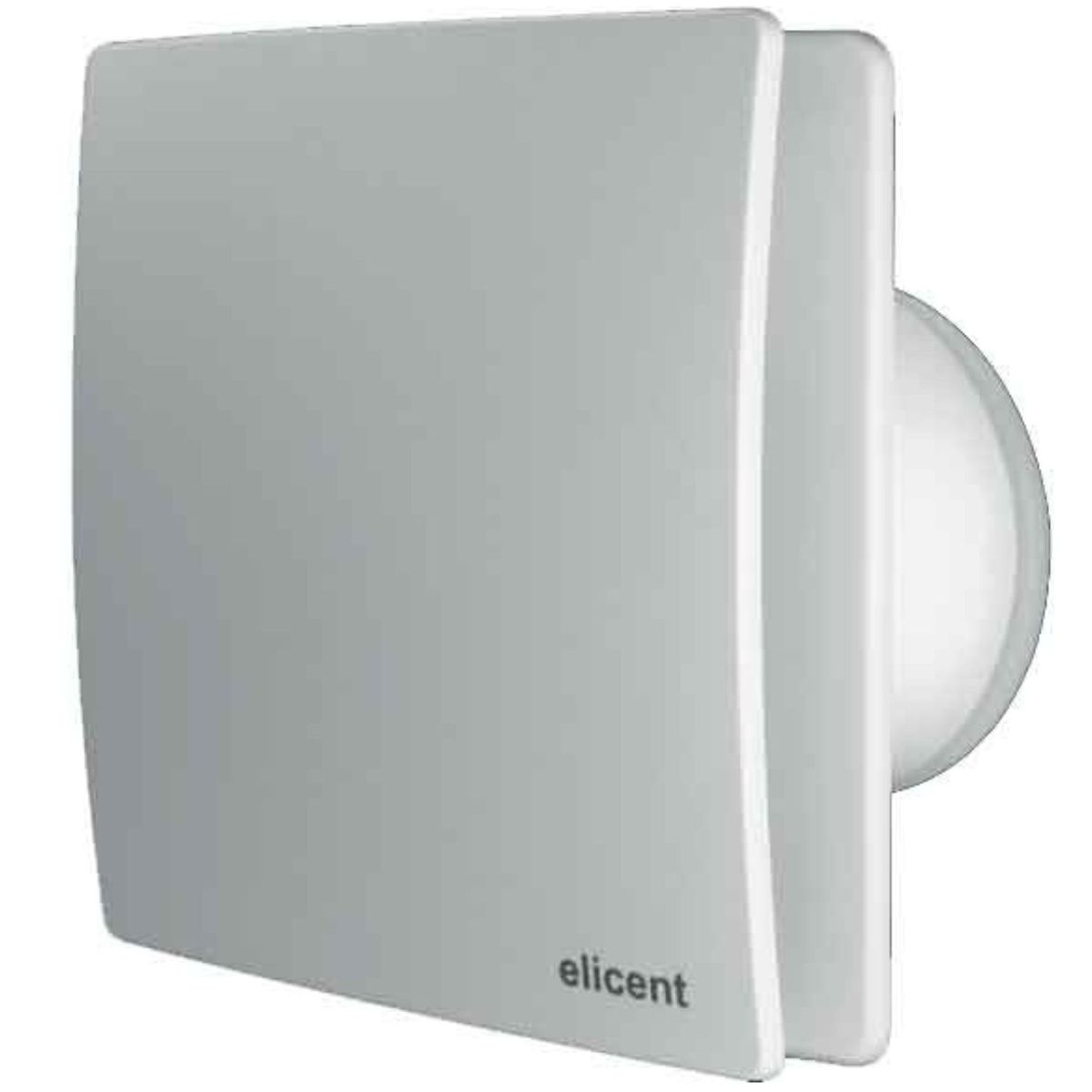

Extractor fan designed to ensure efficient ventilation in small and medium-sized residential and commercial environments, such as bathrooms, kitchens and laundries, its innovative design with smooth front and perimeter suction integrates harmoniously into any environment.
Equipped with anti-turbulence deflectors (Maico patent), it optimises performance and promotes a homogeneous perception of sound frequencies, the 230V-50Hz induction motor, with thermal protection, is suitable for continuous operation and guarantees a long life thanks to the 30,000-hour Long Life bearings.
The high quality antistatic technopolymer structure ensures resistance and durability, installation is simple and can be done both on the wall and on the ceiling.
Datasheet
• Helical aspirator for direct expulsion or in short ducts
• Timed
• Maximum flow rate 90 m³/h
• Maximum pressure 41 Pa
• Power consumption 14 W
• Sound pressure (at 3 m) 31.4 dB(A)
• IPX4 protection rating
• Power supply 230V
• Wall or ceiling installation
• Anti-static technopolymer body material
• Induction motor with thermal protection, Long Life bearings (30,000 hours)
• Connection diameter 100 mm
• Dimensions (WxHxD) 160 x 160 x 80 mm
