Description

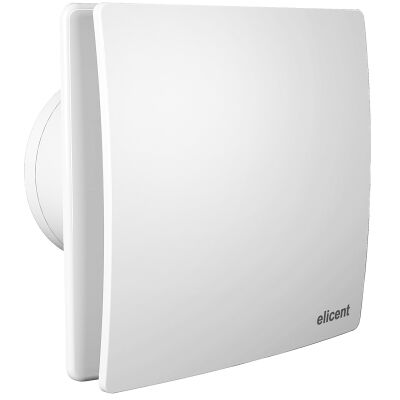

Helical extractor designed for direct expulsion or through short ducts, ideal for wall or ceiling installation in residential and commercial environments, the COMFORTIMER version is equipped with an adjustable electronic timer that delays the switch-off of the appliance from 3 to 25 minutes.
When operating via timer, the motor operates at a lower speed, ensuring maximum acoustic comfort and energy savings of up to 64% compared to a standard timer version.
The high-quality anti-static technopolymer structure ensures durability and corrosion resistance, the 230V-50 Hz induction motor with thermal protection is suitable for continuous service, while the Long Life bearings guarantee a life of up to 30,000 hours.
Datasheet
• Wall or ceiling mounted helical extractor fan
• Pipe diameter 120 mm
• Air flow 165 m³/h (maximum speed), 103 m³/h (reduced speed)
• Maximum pressure 5.5 mmH₂O (maximum speed), 2.1 mmH₂O (reduced speed)
• Power consumption 15 W (maximum speed), 8 W (reduced speed)
• Noise level (at 3 metres) 36.7 dB(A) (maximum speed), 28.4 dB(A) (reduced speed)
• IPX4 protection rating
• Voltage 230 V
• Induction motor with thermal protection, Long Life bearings (30,000 hours)
• High quality antistatic technopolymer body material
• Wall or ceiling installation
• Accessories included: Non-return damper with anti-tipping system
• Application in residential and commercial environments
