Description

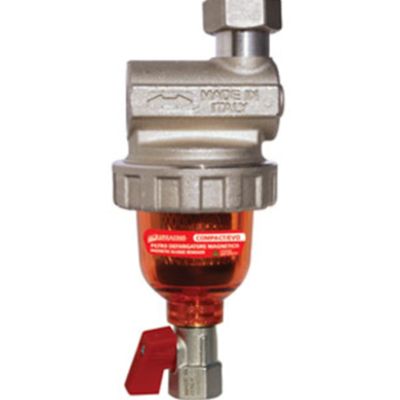

Compact magnetic dirt separator 3/4 F useful for protecting the boiler from impurities present in the pipes.
It is a small dirt separator, but without sacrificing the decantation + filtration + magnetic field effect! It always allows easy and immediate disassembly even after years for correct maintenance. The transparent vessel allows you to check the status of the cartridge and the water in the circuit. The 500 micron double mesh stainless steel cartridge is designed to effectively filter even copper and aluminum, which are not blocked by the magnet as they are non-ferrous materials. Equipped with a discharge system for expelling the filtrate.
Recommended for condensing boilers up to 35 Kw
Datasheet
• Vertical/horizontal installation (vertical recommended)
• Filter cleaning: 15/30 days after first installation. Then schedule a cleaning every 12 months or in any case when the cartridge is dirty
• Connections 3/4"
• Flow rate Lt./min at 3.5 BAR 30
• Filtering capacity (micron) 500
• Max. operating pressure (bar) 25
