Description

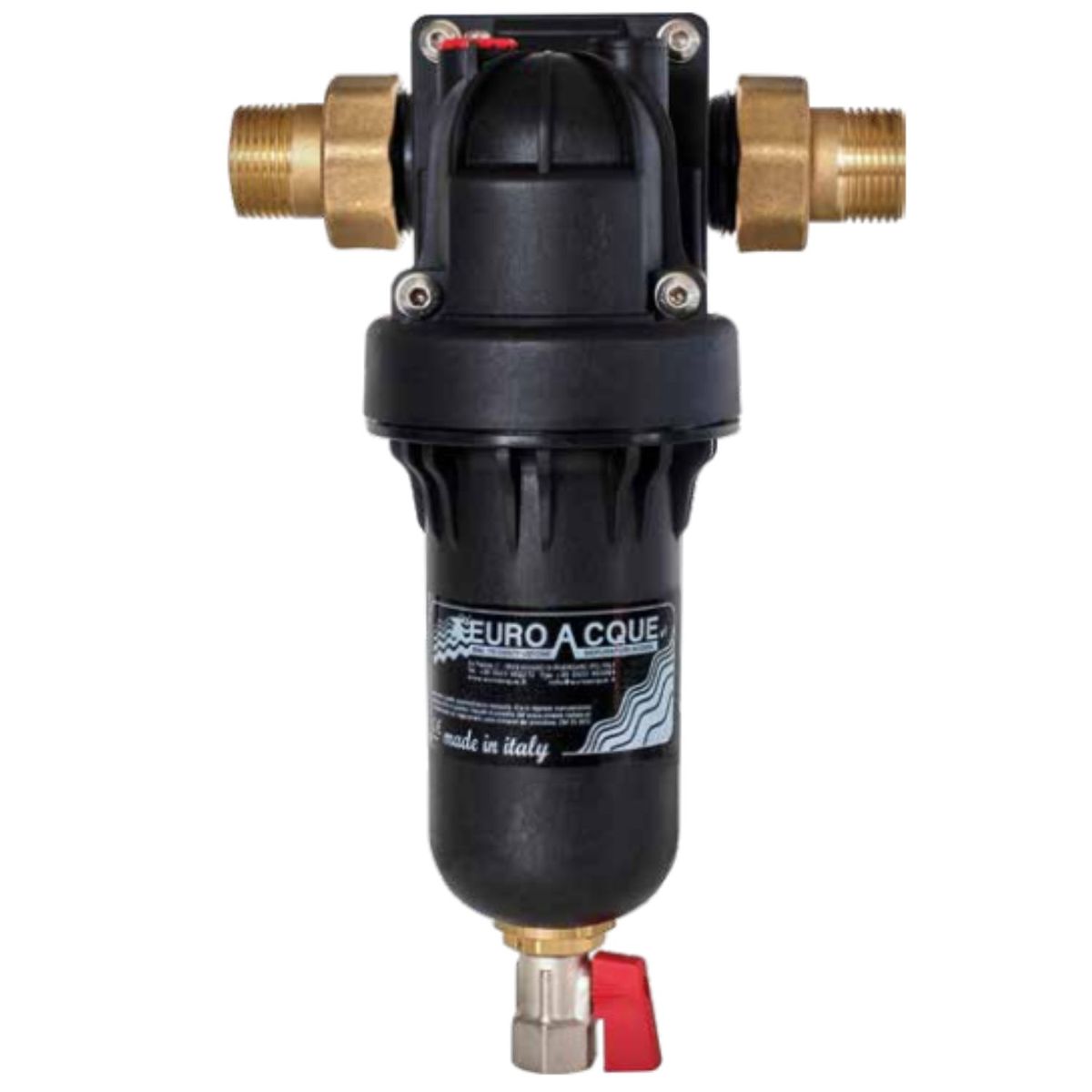

HX line dirt separator, a cutting edge device in the field of self-cleaning cyclone dirt separators as, in addition to discharging the collected dirt (non-ferrous), with its internal magnetic system it guarantees effective and real cleaning from ferrous dirt (oxides and particles).
• ROTARY BRASS ATTACHMENTS: the HX line allows all installations. It is equipped with connections with brass unions with built-in NON-return valve.
• DATE: The date on the head of the dirt separator allows you to monitor the washing frequencies.
• KEY: The key supplied allows you to quick disassembly.
• SELF-CLEANING TAP: The drain tap allows for quick cleaning of the system (from collected sludge).
• LARGE STAINLESS STEEL CARTRIDGE: The 500 micron stainless steel cartridge is designed to filter effectively.
Its size allows it to collect large quantities of dirt.
Recommended up to 70 kW for heating systems.
Recommended up to 20 kW for heat pumps.
Datasheet
• 360° rotatable to allow all installations
• Thermoplastic head/vessel
• Stainless steel cartridges
• Flow rate 58 L/minute
• PN bar 12
• Connections 1" M
• Filtering capacity 500 microns
• Max. water temp. 90 °C
• Self-cleaning tap
• Disassembly key supplied
