Description

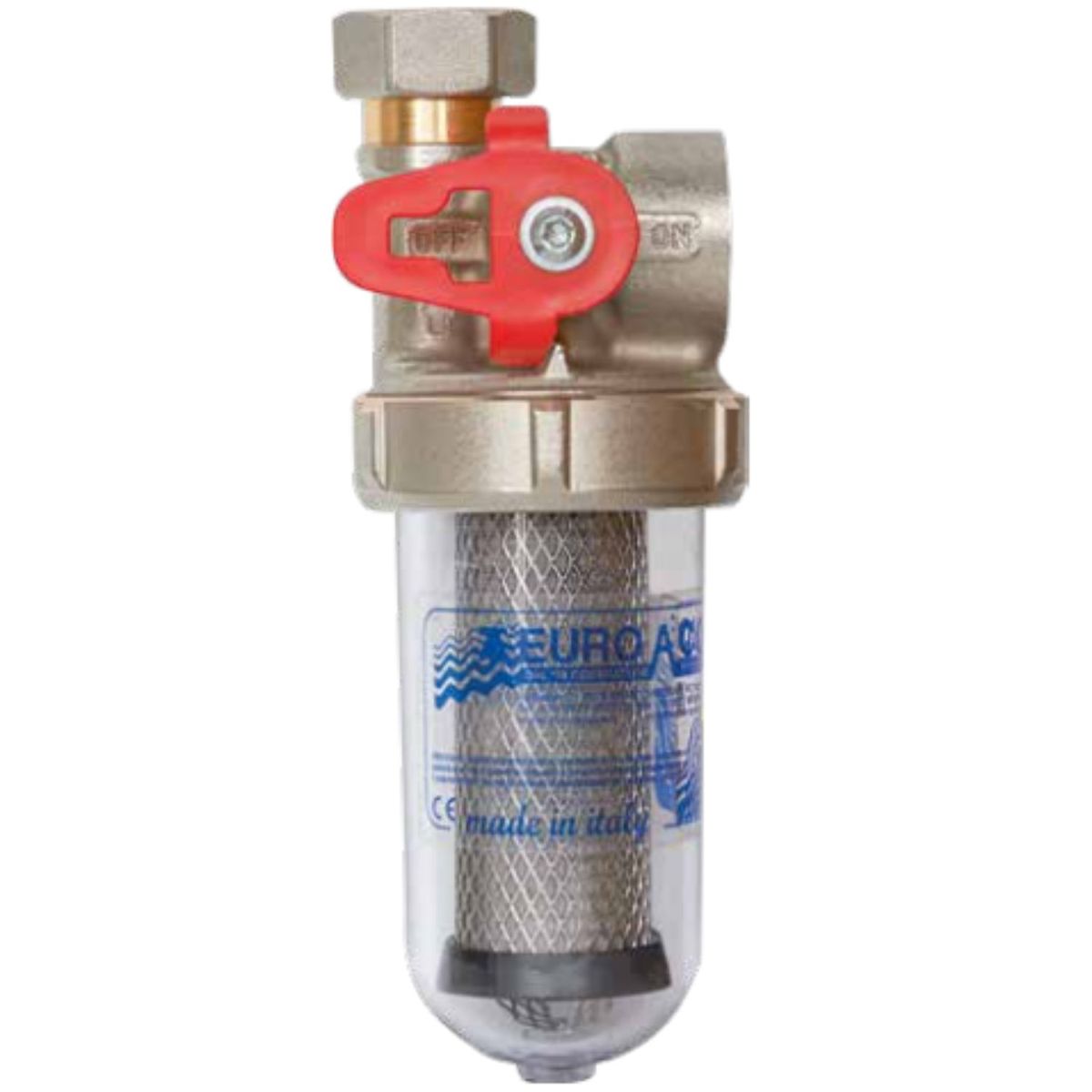

Doser + filter, SOLO , a system for 4 functions: anti-scale, anti-corrosion, filtering and by-pass.
Double 3/4" connection and 1/2" reductions for easy and quick installation, integrated by-pass valve and system closure for easy maintenance (made even easier with the transparent vessel that allows a quick visual check of the status of the cartridge and balls).
Thanks to a PATENTED system, SOLO also has an integrated valve with 3 functions :
1st ON: the dispenser with the system in operation
2nd OFF : the dispenser and system are closed to allow maintenance and refilling
3rd BYPASS : the doser waits for maintenance with filter function excluded and minimum dosage
What is a dispenser? It is a mandatory device (The Ministerial Decree of 26 June 2015, Annex 1 to chapter 2.3.5, introduced the obligation of chemical treatment for each type of system) in new installations or replacements, to be installed at the boiler inlet in the cold water pipe, which performs an anti-scale and anti-corrosion function.
Datasheet
• PN Bar 16
• Connections 3/4 + 1/2 reductions
• Filtering capacity 60 microns
• Flow rate (∆P=0.2 BAR) 25/20 Lt/Min
• 1 silicophosphate charge included
