Magnetic filter dirt separator kit + polyphosphate dispenser + condensate neutralizer
Description

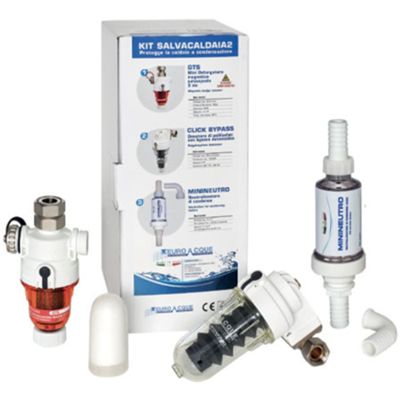

Compact kit consisting of CLICK BYPASS polyphosphate dispenser + GTS magnetic dirt separator filter + MININEUTRO condensate neutralizer perfect boiler saver to prevent limescale and corrosion in the pipes.
Recommended for boilers up to 35 kW
Datasheet
Data of the GTS magnetic filter mud separator:
• Thermoplastic material head/vessel
• Stainless steel cartridge
• Flow rate (∆P=0.2BAR) 33
• PN bar 7
• Connections 3/4"
• Filtering capacity 500 micron
• Max. water temperature 90°C
Data of the CLICK BYPASS polyphosphate doser:• Flow rate Lt/Min 20
• Connections 1/2" FF
• Equipped with 2 rotating spigots
Data of the MININEUTRO condensate neutralizer:• Connections 3/4" with hose holder Ø 20
• Condensate drain treatment from 0 to 35 kw/h
• Max. flow rate: 3 lt/h
• Minimum height from boiler drain outlet: 180 mm
Properties
Cerifications:
