230V hydraulic automation for swing gates for residential use
Description
230V hydraulic automation for swing gates for residential use.
It is composed of all the components necessary for automation.
The kit is ideal for single-leaf gates with a maximum length of 1.80m.
Minimal footprint, ideal for installations in small spaces.
Anti-corrosion coating with high resistance to atmospheric agents.
CBC model with closing lock.
Datasheet
• Mains supply voltage 220-240V~ 50/60 Hz
• Single-phase asynchronous electric motor
• Max power 220 W
• Max thrust force 5000 N (*)
• Max rod speed 13 mm/s (*)
• Motor-pump group flow rate 1 lpm (*)
• Rod stroke 250 mm
• Max door opening angle 110°
• Operating ambient temperature -20°C ÷ + 55°C
• Thermoprotection 120°C
• IP55 protection rating
• Weight 6.5 kg
• Frequency of use 55 cycles/hour
• Max door width 1.80 m
• Type of oil FAAC HP OIL
• Fixing brackets Rear connection to weld/screw. Front connection to weld/screw
• Dimensions (WxDxH) 959 x 85 x 61 mm

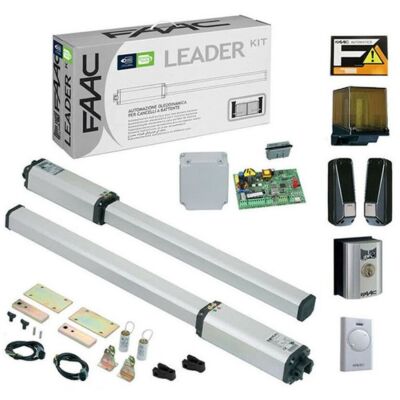

Package contains:
• 2 Actuators 402CBC 104468
• 1 E045S 790077 electronic equipment
• 1 Container mod. And for electronic boards 720119
• 1 XLED flasher 410029
• 1 Pair of XP 20B D 785103 photocells
• 1 XK10 B 401304 key and control button
• 1 Lock with personalized key 71275101
• 1 XF 433MHz Receiver 787831
• 1 2-channel transmitter XT2 433 SLH LR 787007
• 1 "Automatic FAAC" sign
