Description
Complete kit to automate spring-loaded sectional and overhead doors, installation is quick and simple thanks to the pre-assembled track.
24V electromechanical towing actuator for spring-loaded sectional and overhead doors, for residential use.
Quick and simple installation thanks to the pre-assembled track and fixing of the automation without tools with rotation coupling.
Datasheet
Technical specifications:
• Mains supply voltage 230V
• Electric motor with 24V brushes
• Max power 220W
• Max thrust force 600N
• Min architrave height 35 mm
• Courtesy light max 230V - 40W
• Courtesy lamp timing 120 s
• Max trolley speed 6.6 m/min
• Slowdown speed 1.3 m/min
• Electronic encoder
• Noise level 45 dbA
• Operating ambient temperature -20°C ÷ +55°C
• Degree of protection for internal use IP20
• Dimensions (WxDxH) 360 x 200 x 145 mm
• Built-in E600 electronic equipment
• Frequency of use continuous use

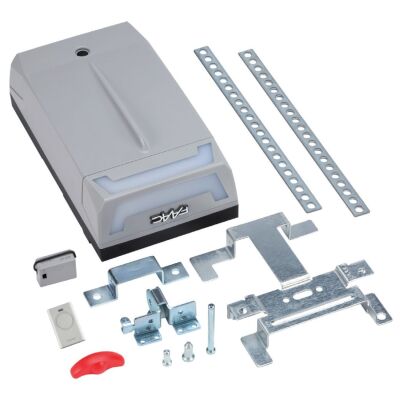

Kit contents:
• D600 actuator
• XF 433 MHz receiver
• XT2 433 SLH LR 2-channel transmitter
• “Automatic FAAC” sign
Certifications:
• THERE IS
