Description

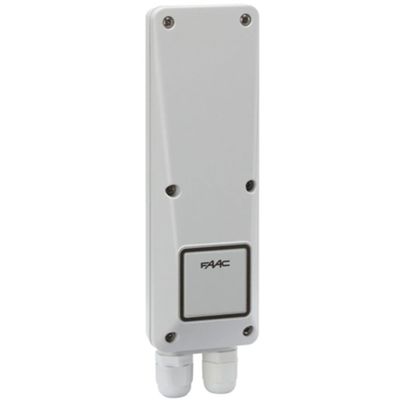

Transmitter that facilitates the installation of safety systems, allowing the connection of one or two 8.2 KOhm resistive sensitive edges or auxiliary devices, communicates with the FAAC XR S 868 receiver, allowing the management of up to 6 XT S 868 transmitters for each receiver, or up to 12 XS55 model sensitive edges.
Installation is simple thanks to the wall mounting, and it is powered by two 1.5V AA lithium batteries.
Transmission occurs on the 868 MHz frequency with self-regulation on 4 channels, guaranteeing a maximum nominal range of 20 metres, while the device is designed to operate in environments with temperatures between -20°C and +55°C and has an IP55 protection rating, ensuring resistance to adverse weather conditions.
Datasheet
• Power supply 2 x 1.5V AA lithium batteries
• Transmission frequency 868 MHz
• Self-adjusting frequency on 4 channels
• Max nominal range 20 m
• Maximum of 2 connectable sensitive edges
• Mechanical (NC contact) and/or resistive (8.2 KOhm) sensitive edge technology
• IP55 protection rating
• Dimensions (LxWxH) 5 x 3.2 x 15.8 cm
• Operating temperature -20°C ÷ +55°C
