WB 9 B concealed fixing for wall-hung WCs and bidets
Safe, contactless metal-ceramic installation
Tested up to 400kg – Side, top or bottom access
Description
The fixing system has been designed to offer safe and compatible with all major wall-hung toilets and bidets for ceramics with a thickness of 34 to 47 mm.
The fixing takes place without any direct contact between the ceramic and the metal, thus eliminating the risk of damage or structural stresses over time to maintain the ceramic for a long time.
The fixing is certified to support up to 400 kg, according to the UNI EN 997 and UNI EN 14528 standards, confirming the high quality and safety of the product.
Datasheet
• M12 threaded rods – ceramic from 34 to 47 mm
• Tested to 400 kg – UNI EN 997 / UNI EN 14528 standards
• Installation: hidden – no ceramic/metal contact

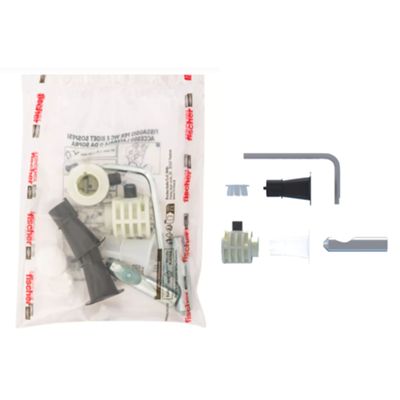

Kit contents:
• 2 M12 sleeves
• 4 funnels (2 white + 2 black)
• 2 white hole cover caps
• 1 key 50x100 mm
