GBD N/PLG87-100 - 87° elbow 100 black stainless steel single wall

GBD N/PLG87-100 - 87° elbow 100 black stainless steel single wall

SKU: GBDN/PLG87-100
Brand: GBD

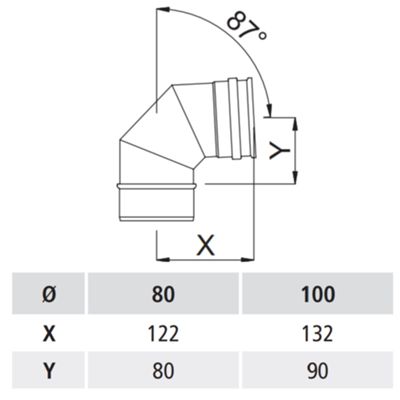

87° elbow in matt black stainless steel single wall Ø100

For pellet smoke systems, ideal for stoves and boilers

Resistant up to 550 °C – refined aesthetics and maximum durability

€26.37pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

87° single-wall elbow in AISI 316L/Ti stainless steel with high temperature (HT) matt black finish, exclusively indicated for internal installations of flue pipes for pellet stoves and boilers. Its painting guarantees resistance up to 550 °C, preventing detachment or exfoliation phenomena.

Datasheet

• Single-wall line thickness 0.4 mm

• Material 316L/Ti stainless steel black painted

• Smoke evacuation applications for pellet stoves and boilers

• UNI EN 1856-1 certifications – T200 P1 W V2 L50 040 O / T400 N1 D V2 L50 040 G

• Three-lip seal

• Thermal resistance up to 550 °C

Properties

Fume exhaust system:
Pellet
Cerifications:
C E
Figure:
Elbow
Dimension:
100
Material:
Stainless steel
Type of joint:
Fitting / Connection
