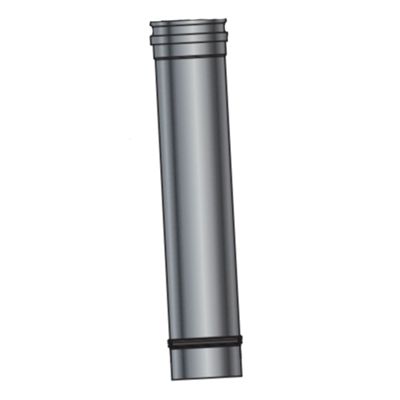

Straight tube or adjustable linear element Ø80 in single-wall 316L stainless steel
Adjustable linear tube from 70 to 370 mm, ideal for quick adjustments
Compatible with gas, pellet, wood and condensing boilers
Description
Adjustable single-wall element model UNIPLUS is made of anti-reflection 316L stainless steel, ideal for lining existing flues or for internal installations of condensing, gas, pellet or wood boilers.
The element is made of a single piece (not telescopic) that can be rotated 360°, allowing adjustment from 70 to 370 mm and is ideal in the presence of misalignments or to compensate for tolerances between rigid elements.
It is easily installed using the double calibrated socket system, ensuring a stable connection. The secure connection does not require the use of adapters or sealants.
It must be mounted after a straight element of at least 450 mm (e.g. PL50 or higher), and in vertical installations it requires the use of an upper support bracket.
Datasheet
• UNIPLUS PL single-wall line
• Material 316L/Ti stainless steel 2B finish
• Smoke evacuation applications
• UNI EN 1856-1 certifications – T600 N1 D V2 L50 040 G
• Three-lip seal
• To be installed after straight pipe ≥ 450 mm; if installed vertically, bracket required
