GBD PLTR80-100 - MF 87° single wall stainless steel tee 100 with 80 reduction
SKU: GBDPLTR80-100
Brand: GBD

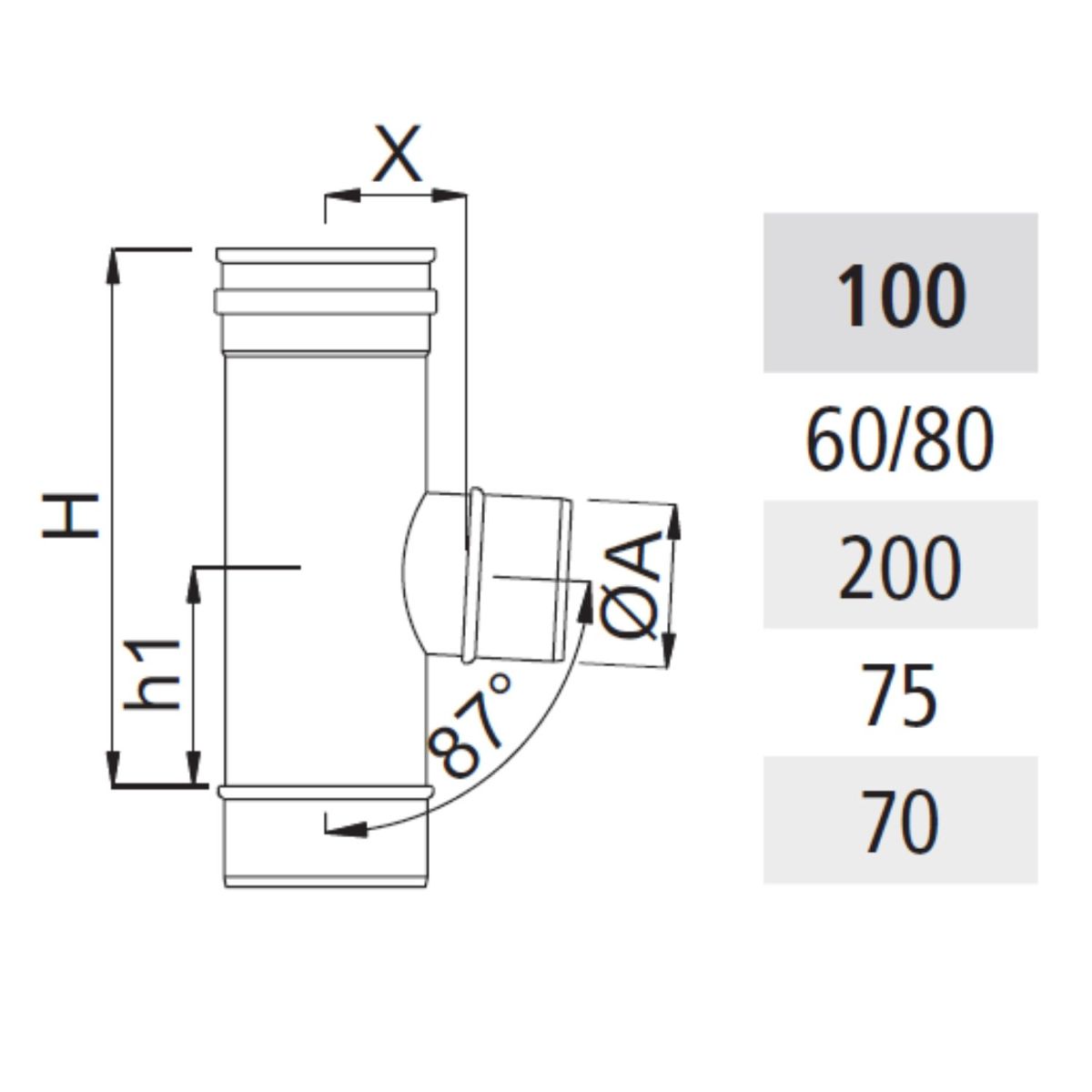

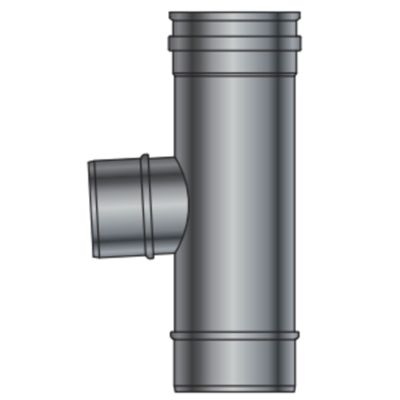

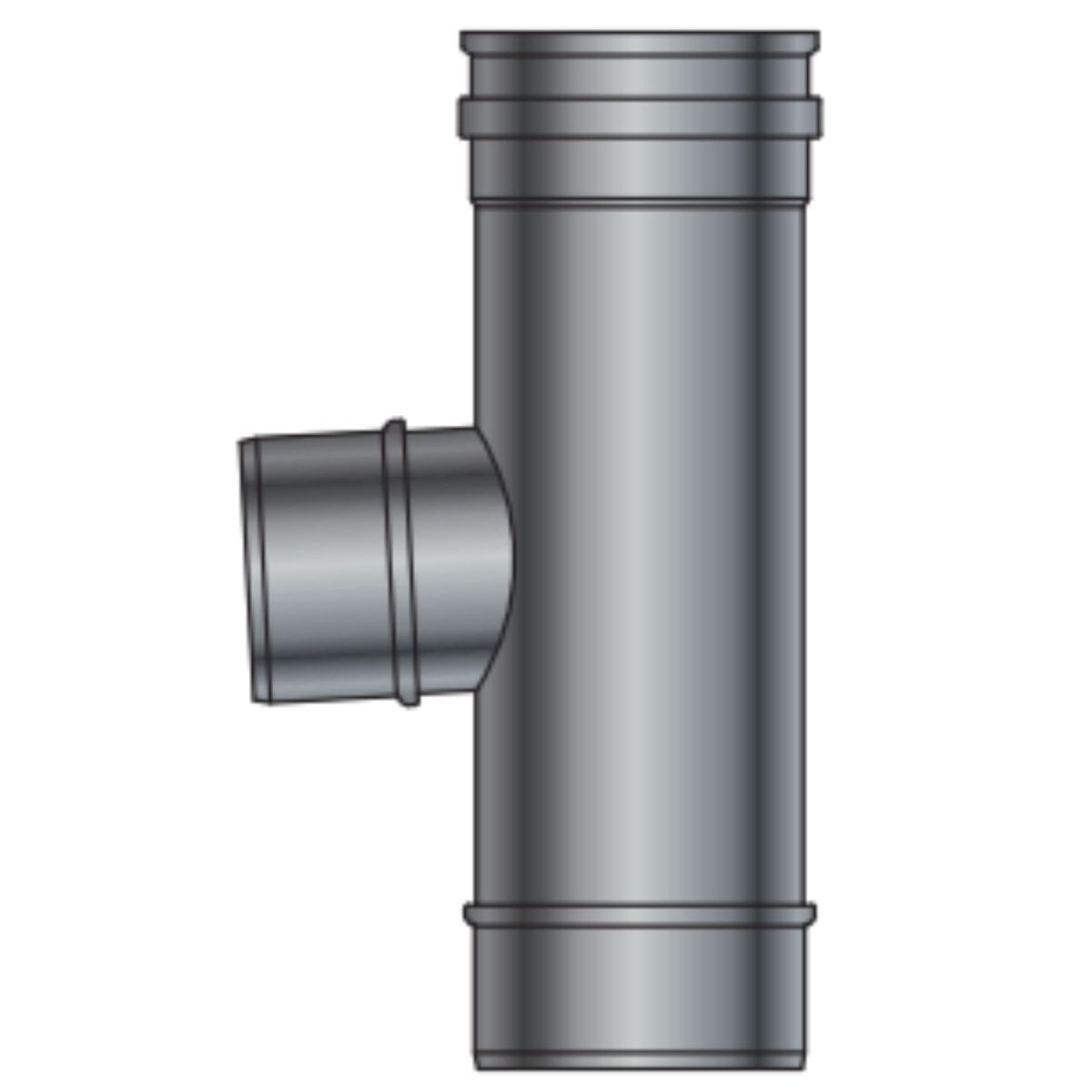

Tee 87° MF Ø100 in 316L stainless steel single wall with reduction in belly to Ø80
Reduced T-element for branches or inspections in smoke ducts
Compatible with gas, pellet, wood and condensing boilers
Description
Reduced Tee 87° single wall UNIPLUS model is made of anti-reflection 316L stainless steel, ideal for lining existing flues or for internal installations of condensing, gas, pellet or wood boilers.
It is easily installed via the double calibrated socket system, ensuring a stable connection. The secure connection does not require the use of adapters or sealants.
Datasheet
• UNIPLUS single-wall line
• Material 316L/Ti stainless steel 2B finish
• Smoke evacuation applications
• UNI EN 1856-1 certifications – T600 N1 D V2 L50 040 G
• Three-lip seal
Properties
Fume exhaust system:
Single-wall
Cerifications:
Figure:
T fitting
Dimension:
80
100
Material:
Stainless steel
Type of joint:
Fitting / Connection
