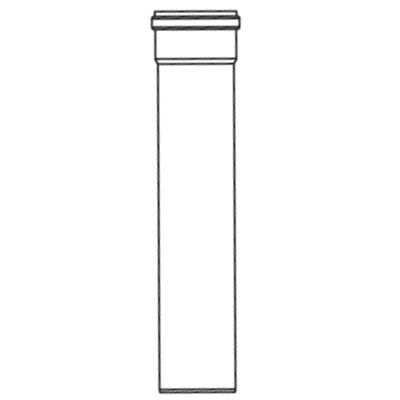

Single-walled polypropylene linear element Ø80 100 cm long
For smoke exhaust and air intake in condensing boilers
Resistant to condensation and positive pressure up to 5000 Pa
Description
The rigid single-wall linear element made of PP resistant to acid condensation corrosion (class W), and certified to operate both in positive pressure (up to 5000 Pa, H1) and in depression for the evacuation of fumes and the suction of combustion air from gas condensing boilers with fume temperatures of up to 120 °C.
The element houses a triple-lip gasket in EPDM (in the female glass), which guarantees a perfect hermetic seal and a long life even in humid internal environments.
The tube can be cut to size with a fine-toothed saw, following the assembly instructions.
Datasheet
• Single-wall rigid linear element
• Material Polypropylene (PP)
• Matt white finish
• Maximum temperature 120 °C (designation T120)
• Max pressure 5000 Pa (H1 designation)
• Resistance class: W – Condensation | 2 – Gas corrosion | O – Not resistant to soot fire
• Internal Installation
• UNI EN 14471:2015 – CE standard
