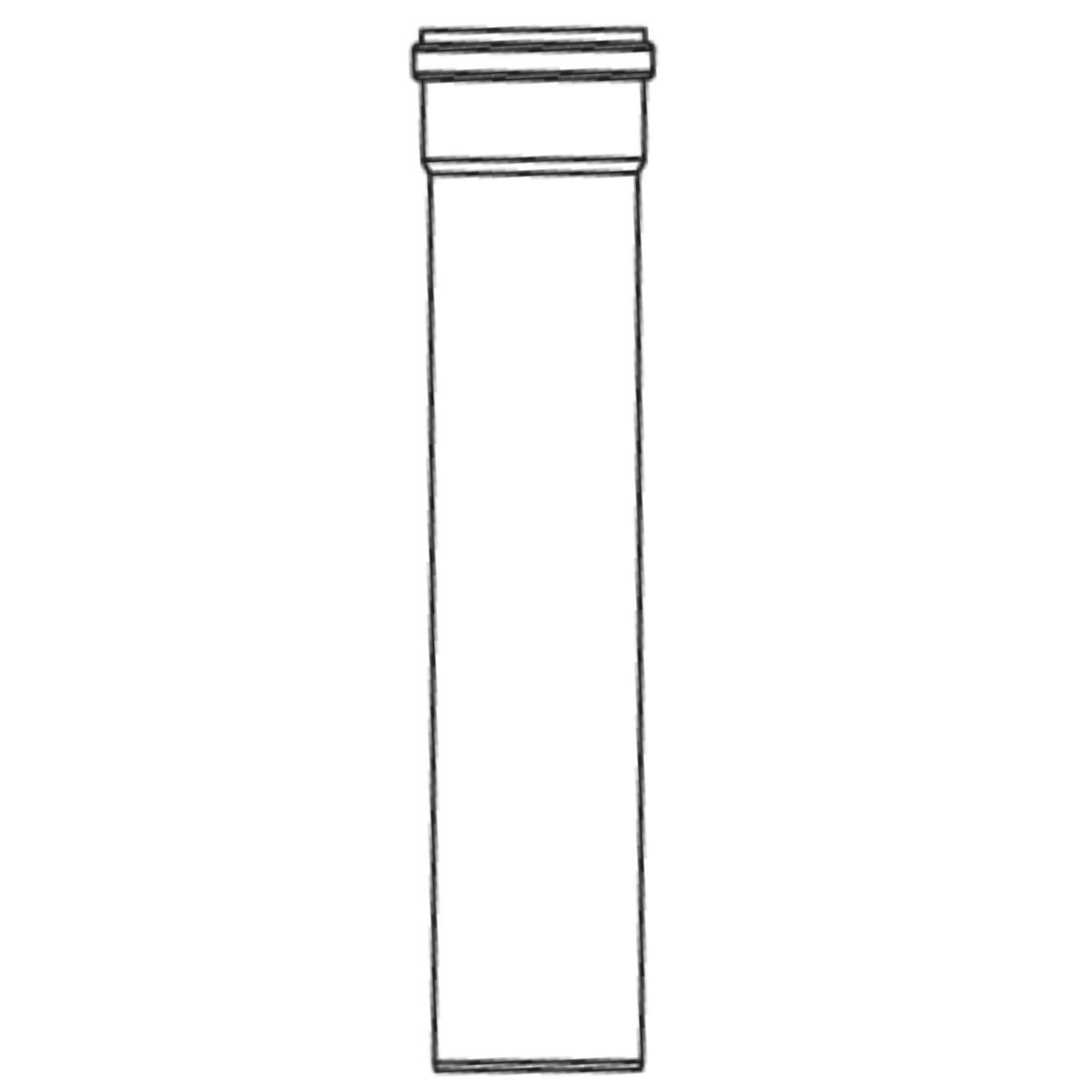

Single-walled polypropylene linear element Ø80 250 cm long
For smoke exhaust and air intake in condensing boilers
Resistant to condensation and positive pressure up to 5000 Pa
Description
The rigid single-wall linear element made of PP resistant to acid condensation corrosion (class W), and certified to operate both in positive pressure (up to 5000 Pa, H1) and in depression for the evacuation of fumes and the suction of combustion air from gas condensing boilers with fume temperatures of up to 120 °C.
The element houses a triple-lip gasket in EPDM (in the female glass), which guarantees a perfect hermetic seal and a long life even in humid internal environments.
The tube can be cut to size with a fine-toothed saw, following the assembly instructions.
Datasheet
• Single-wall line thickness 0.4 mm
• Material 316L/Ti stainless steel black painted
• Smoke evacuation applications for pellet stoves and boilers
• UNI EN 1856-1 certifications – T200 P1 W V2 L50 040 O / T400 N1 D V2 L50 040 G
• Three-lip seal
• Thermal resistance up to 550 °C
Properties
