Polypropylene centering spacer Ø60
Stabilizes the pipe inside the flue during lining
For condensing boilers
Description

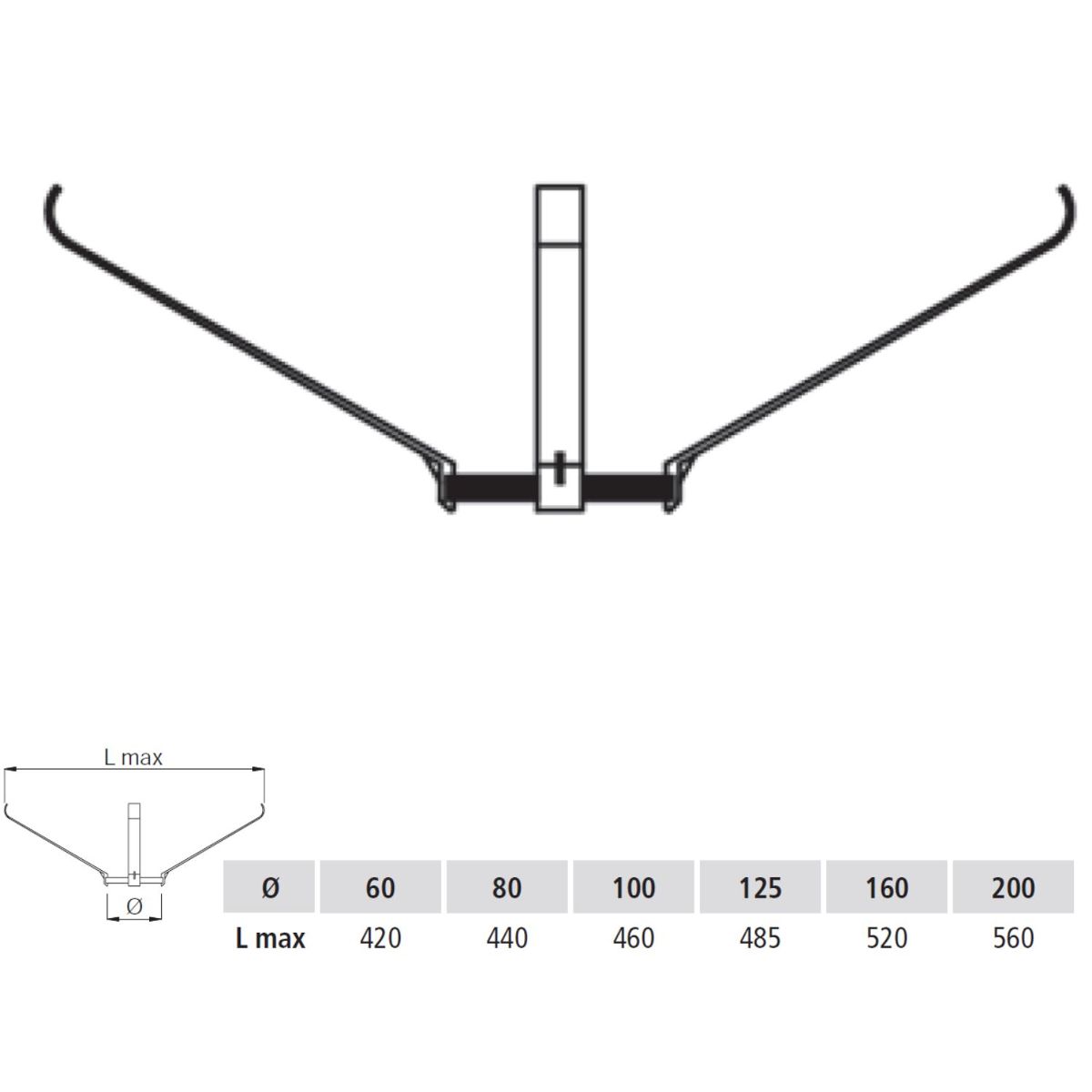

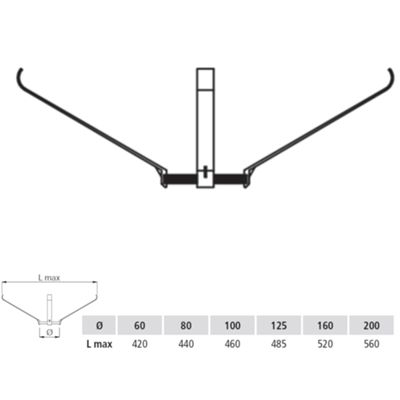

The spacer is an accessory to be used to ensure that the single-wall or flexible PP pipe is centered, thus avoiding direct contact with the walls of the flue chimney.
The flexible structure of the spacer adapts perfectly to the internal diameter of the shaft, and fits easily along the pipe, contributing to the mechanical stability and safety of the system. Made of PP resistant to condensation and corrosion and discharges used for the flue gas exhaust and air intake in gas condensing boilers, with flue gas temperature up to 120 °C and positive pressure up to 5000 Pa.
Datasheet
• Centering spacer
• Material Polypropylene (PP)
• Matt white finish
• Maximum temperature 120 °C (designation T120)
• Max pressure 5000 Pa (H1 designation)
• Resistance class: W – Condensation | 2 – Gas corrosion | O – Not resistant to soot fire
• Internal Installation
• UNI EN 14471:2015 – CE standard
