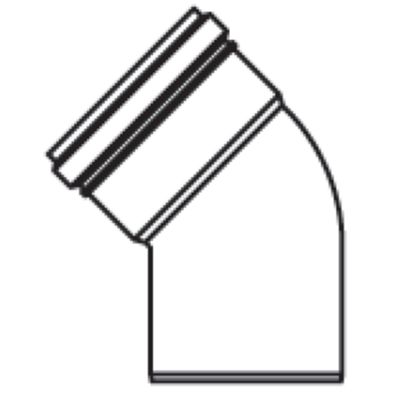

43.5° Ø60 single-wall polypropylene bend
For angled deviations in flue gas systems from condensing boilers
Integrated seal – Condensation and pressure resistant
Description
The 43.5° bend in rigid polypropylene (PP), for creating angled deviations in flue gas exhaust and combustion air intake systems for gas-fired condensing boilers, resistant to acid condensation (class W) and positive pressure up to 5000 Pa (H1).
The socket coupling with pre-assembled three-lip EPDM gasket to ensure a perfect seal.
Datasheet
• 30° rigid single-wall bend
• Material Polypropylene (PP)
• Matt white finish
• Maximum temperature 120 °C (designation T120)
• Max pressure 5000 Pa (H1 designation)
• Resistance class: W – Condensation | 2 – Gas corrosion | O – Not resistant to soot fire
• Internal Installation
• UNI EN 14471:2015 – CE standard
