GBD PRG87-060 - 87° elbow 60 pp

GBD PRG87-060 - 87° elbow 60 pp

SKU: GBDPRG87-060
Brand: GBD

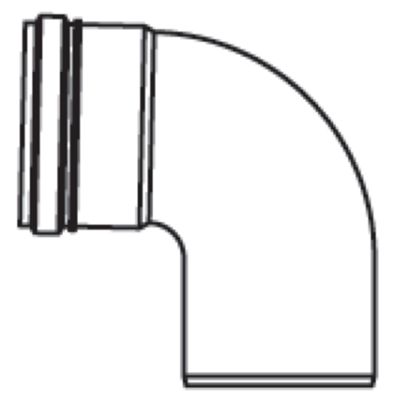

87° elbow Ø60 in single-wall polypropylene

For angled deviations in flue gas systems from condensing boilers

Integrated seal – Condensation and pressure resistant

You save -5%
€2.58pcs
€2.72pcs
You save €0.14pcs Promotion active until 27 September
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

The 87° elbow made of rigid polypropylene (PP), for creating angled deviations in flue gas exhaust and combustion air intake systems for gas-fired condensing boilers, resistant to acid condensation (class W) and positive pressure up to 5000 Pa (H1).

The socket coupling with pre-assembled three-lip EPDM gasket to ensure a perfect seal.

Datasheet

• 87° rigid single wall elbow

• Material Polypropylene (PP)

• Matt white finish

• Maximum temperature 120 °C (designation T120)

• Max pressure 5000 Pa (H1 designation)

• Resistance class: W – Condensation | 2 – Gas corrosion | O – Not resistant to soot fire

• Internal Installation

• UNI EN 14471:2015 – CE standard

Properties

Fume exhaust system:
Boilers
Cerifications:
C E
Figure:
Elbow
Dimension:
60
Material:
PP
Type of joint:
Fitting / Connection
