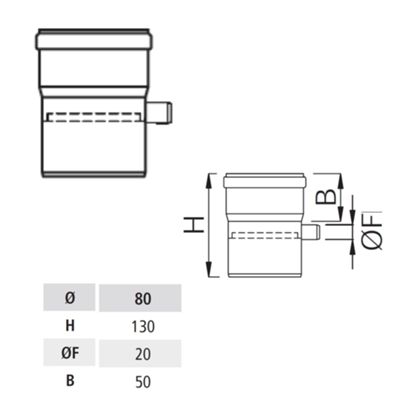

Single-wall polypropylene condensate separator Ø80
Safe and hygienic management of acidic liquids in condensing flue systems
Resistant to condensation and positive pressure up to 5000 Pa
Description
The rigid single-wall condensate separator made of PP is resistant to corrosion from acid condensation (class W), and certified to operate both in positive pressure (up to 5000 Pa, H1) and in depression for the evacuation of fumes and the suction of combustion air from gas condensing boilers with fume temperatures of up to 120 °C.
It allows condensation to be intercepted and conveyed to a dedicated collection point, before it is disposed of through a threaded connection.
The element houses a triple-lip gasket in EPDM (in the female glass), which guarantees a perfect hermetic seal and a long life even in humid internal environments.
Datasheet
• Single-wall rigid condensate separator
• Material Polypropylene (PP)
• Matt white finish
• Maximum temperature 120 °C (designation T120)
• Max pressure 5000 Pa (H1 designation)
• Resistance class: W – Condensation | 2 – Gas corrosion | O – Not resistant to soot fire
• Internal Installation
• UNI EN 14471:2015 – CE standard
Properties
