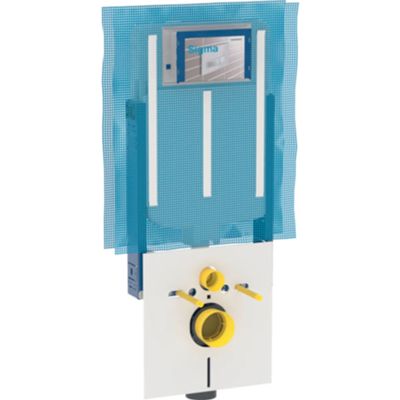

Geberit Combifix module for wall-hung toilet, 109 cm, with Sigma 8 cm concealed cistern
For masonry walls
Description
Geberit Combifix is the perfect combination of the Sigma 8 cm concealed cistern and the installation frame for the installation of wall-hung sanitary ware, and is ideal for residential environments, new bathrooms and renovations, as well as public and commercial buildings, suitable for frequent installations thanks to its ease of maintenance and reliability.
Using the wall anchor located on the frame, you can match the wall-hung toilet of your choice.
This cistern represents a versatile and efficient solution for flushing floor-mounted toilets. Designed for masonry installations, it features a pre-assembled plasterboard mesh, anti-condensation insulation to prevent moisture from building up inside the wall, and a flush structure designed for front actuation, simplifying installation and maintenance in line with Geberit's high quality standards.
The flush volume is flexible: the default setting is 6 liters for the long flush and 3 liters for the short flush, but both are adjustable. The long flush can be set to 4.5, 6, or 7.5 liters, while the short flush can be adjusted between 2 and 4 liters, significantly contributing to water savings.
The water connection is located at the top and includes an integrated shut-off valve. The included construction protection cover can be shortened and is suitable for flush-mounted flush plates, which must be ordered separately. The Geberit DuoFresh kit is also available for purchase separately.
Datasheet
• For installation in partial or full height wall-mounted installations
• For masonry walls
• For wall-hung toilets with connection dimensions according to EN 33:2011
• Rinse bell with adjustable flow reducer
• Powder-coated mounting frame, covered with four fixing flanges
• Pre-assembled plaster mesh
• Dynamic pressure 0.1–10 bar
• Max water temperature 25 degrees
• Large rinse volume 4/4.5/6/7.5 litres
• Small rinse volume 2–4 litres
Package Contents:
• Combifix built-in toilet with Sigma 8 cistern for masonry for wall-hung sanitary fixtures
• Water connection R 1/2", compatible with MasterFix and MeplaFix, with integrated stop valve and handwheel
• Construction site protection with inspection opening
• WC connection set, ø 90 mm
• Technical curve in PE-HD, ø 90 mm
• 2 protective caps
• 2 M12 threaded rods
• Decoupling set
• Fixing material
Not including flush plate, Geberit DuoFresh module or otherProperties
