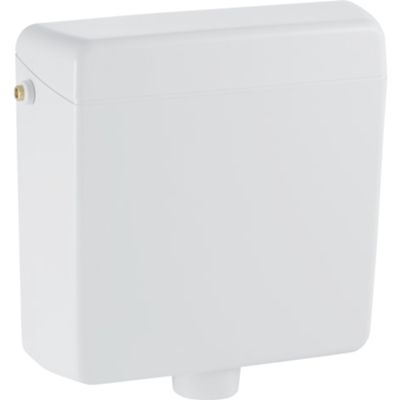

AP123 external flush cistern with interruptible flush, for remote control
For pneumatic control (to be purchased separately)
Alpine white color
Description
The AP123 external cistern is a versatile and technologically advanced toilet flushing solution, designed for flexibility and a clean aesthetic. Its unique feature is its provision for a pneumatic remote control, allowing the activation button to be positioned in a more convenient or discreet location, separate from the cistern itself (the pneumatic control, like the button, lift, and water connection kit, are not included and must be purchased separately).
The cistern is designed for various installation options, low directly above the toilet or concealed, compatible with walls with a maximum thickness of 70 mm, in combination with floor-standing toilets.
It is insulated against condensation, preventing water droplets from forming on the outer surface. The cistern lid is smooth and has no integrated control button, as it is activated via a remote pneumatic system.
The water connection is provided on the side and can be converted into a central rear water intake.
Datasheet
• For low/medium position mounting
• For bathroom furniture or for installation behind the wall
• For thin walls with a maximum thickness of 70 mm in combination with a floor-standing toilet
• For pneumatic remote control flush actuators
• Rinse at a quantity
• Insulated against condensation
• Flush cistern lid without control button
• Lateral water connection
• 3/8" water connection
• Max water temperature 25°C
• Default rinse volume setting 9 l
• Rinse volume adjustment range 6 / 9 l
• ABS material
Package Contents:
• 1 AP123 external box for pneumatic control
• Fixing material
1/2" chrome stop valve (215.085.21.1), rinse bend, pneumatic control and all installation accessories to be ordered separately
