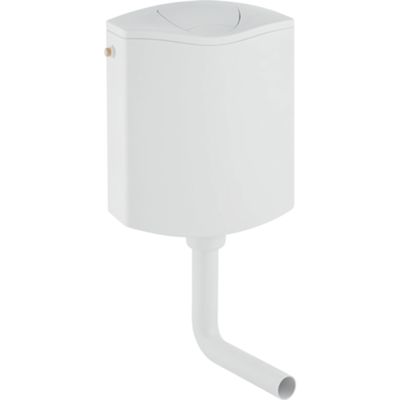

Geberit AP116 dual flush external cistern
Double button
Alpine white color
Low position mounting
Description
The Geberit AP116 external flush cistern made of alpine white ABS is the practical and efficient solution for the bathroom, ideal for low-profile installation.
This external cistern is equipped with a dual-volume flush system, operated via a double button integrated into the lid.
The AP116 cistern is insulated against condensation, an important detail that prevents the formation of water droplets on the external surface, keeping the surrounding environment dry and hygienic. The water connection can be made either on the side (left or right) or in the center at the back, offering flexibility during installation.
Datasheet
• For low/medium position mounting
• Dual-quantity rinse
• Insulated against condensation
• Side or rear water connection in the center
• Dynamic pressure 0.1–10 bar
• Storage temperature ≤ 40 °C
• Max water temperature 25°C
• Default rinse volume setting 6 / 3 l
• Long rinse adjustment range 6–7.5 l
• Small volume rinse adjustment range 3–4.5 l
• ABS material
• Not suitable for remote control
Package Contents:
• White external box
• 1 3/8" stop valve
• 1 curved copper tube
• 1 90° ABS rinse bend, ø 50/44 mm, 23 x 23 cm
• 1 EPDM clamp, ø 44/55 mm
• Fixing material
Any installation accessories not mentioned must be ordered separately.
