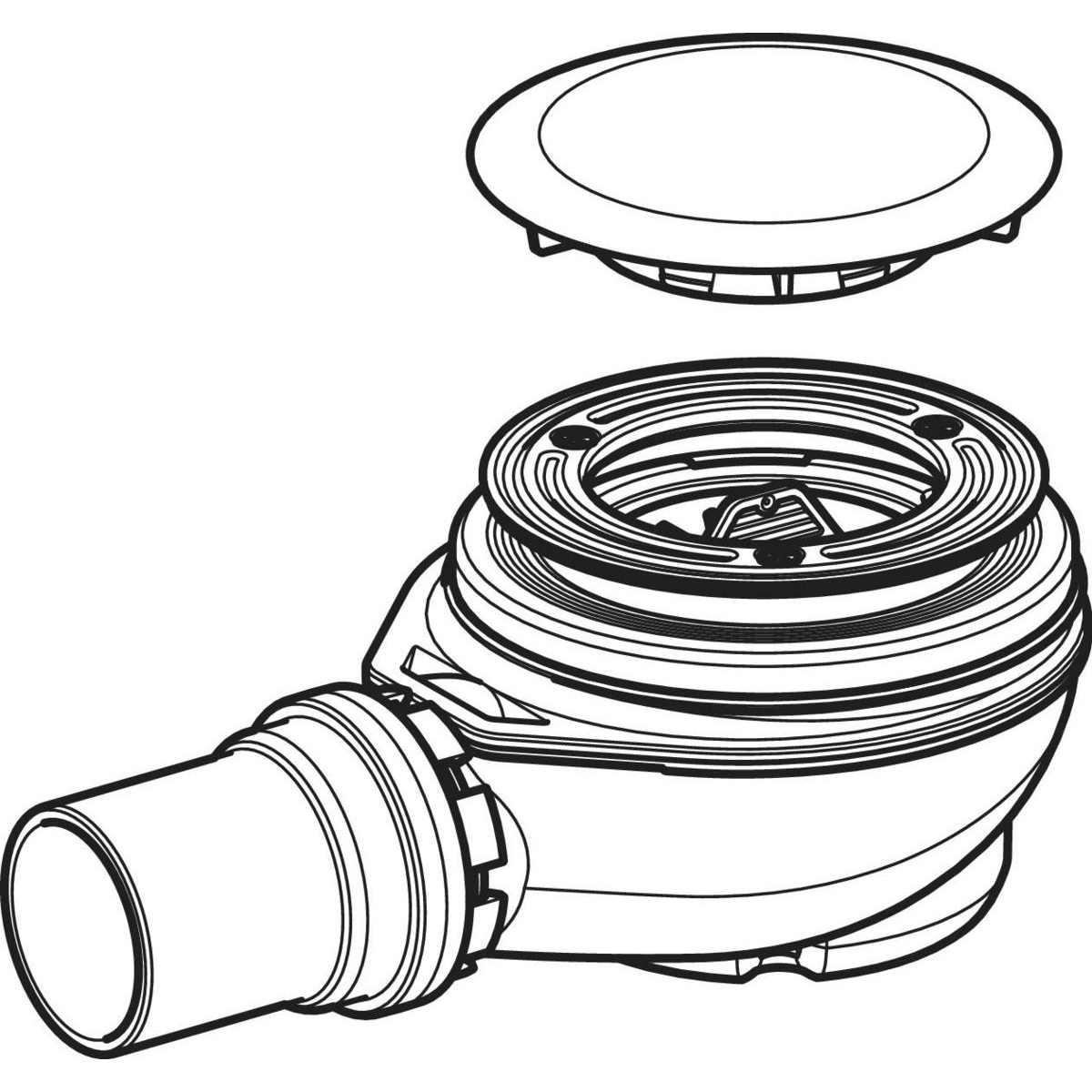

Geberit d90 shower drain/siphon, with drain plug, 50 mm hydraulic closure height, PE drain
Complete with polished chrome cap
With removable internal glass and sheath for maintenance
Description
The Geberit shower drain, 7.8 cm high, is a robust and efficient standard solution designed for shower trays with a 90 mm drain hole. This solution is suitable for most installations, ensuring effective drainage.
The siphon ensures a 50 mm water seal, a standard depth that effectively prevents unpleasant odors from rising from the sewer system. Its drainage capacity ensures rapid drainage from the shower.
The strong point of this waste is its ease of maintenance: both the siphon cup and the immersion tube are removable, making cleaning and the removal of any build-up of hair or impurities much easier, thus maintaining high performance over time.
The design is enhanced by a polished chrome cap that offers a modern look and integrates harmoniously with bathroom decor.
Datasheet

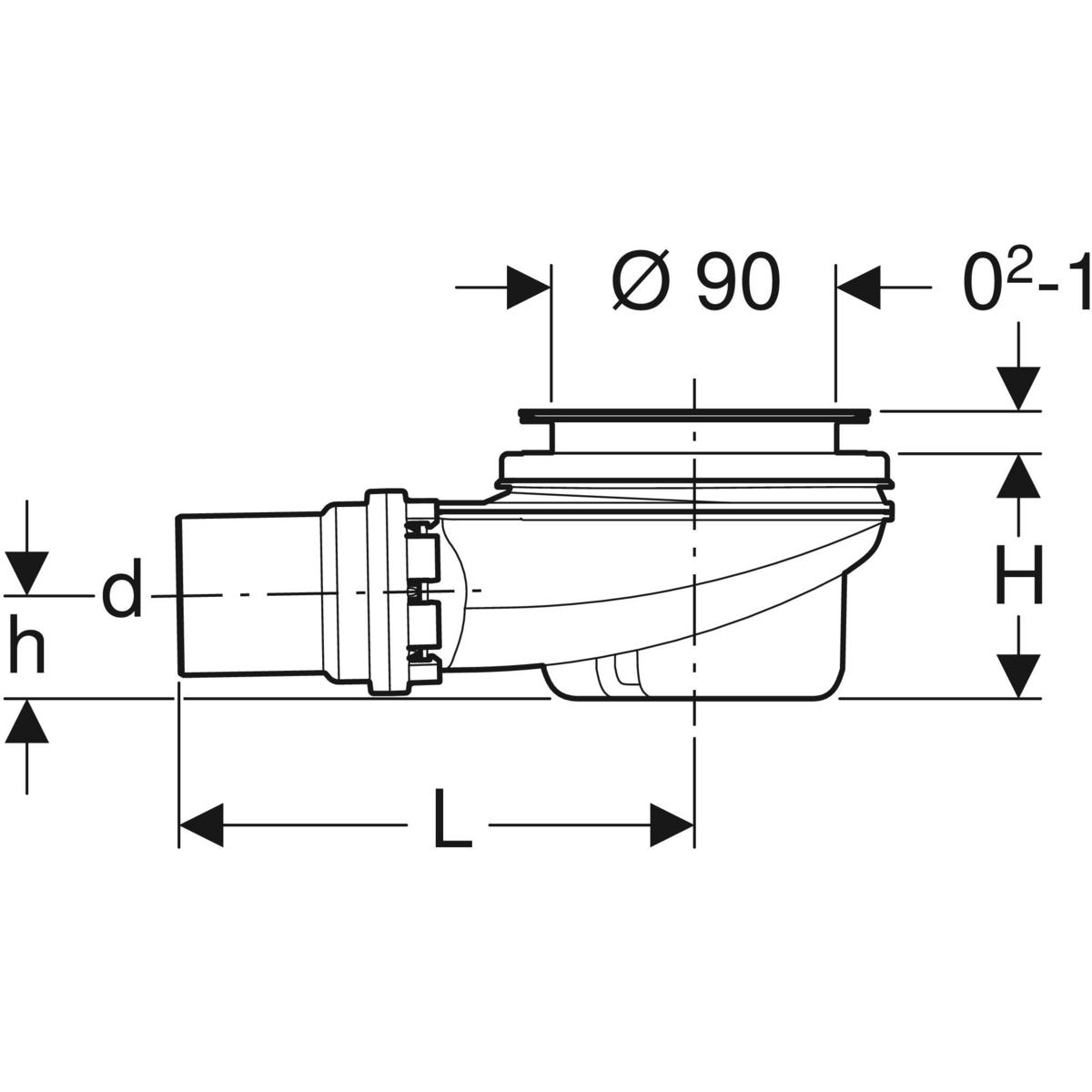

• Drain/siphon for shower trays with drain hole ø 90 mm
• Complete with polished chrome grille
• Drain flow rate with 15 mm head height 0.65 l/s
• Hydraulic closing height (mm) 50
• Low waste H (without cover) 7.8 cm
• Quality control according to EN 274-3
• Removable immersion tube
• Removable siphon glass
• Diameter of exhaust pipe to be connected Ø40 mm
Package Contents:
• Drain plug
• Siphon
• Comb insert
• Fixing material
Other installation accessories to be ordered separately
