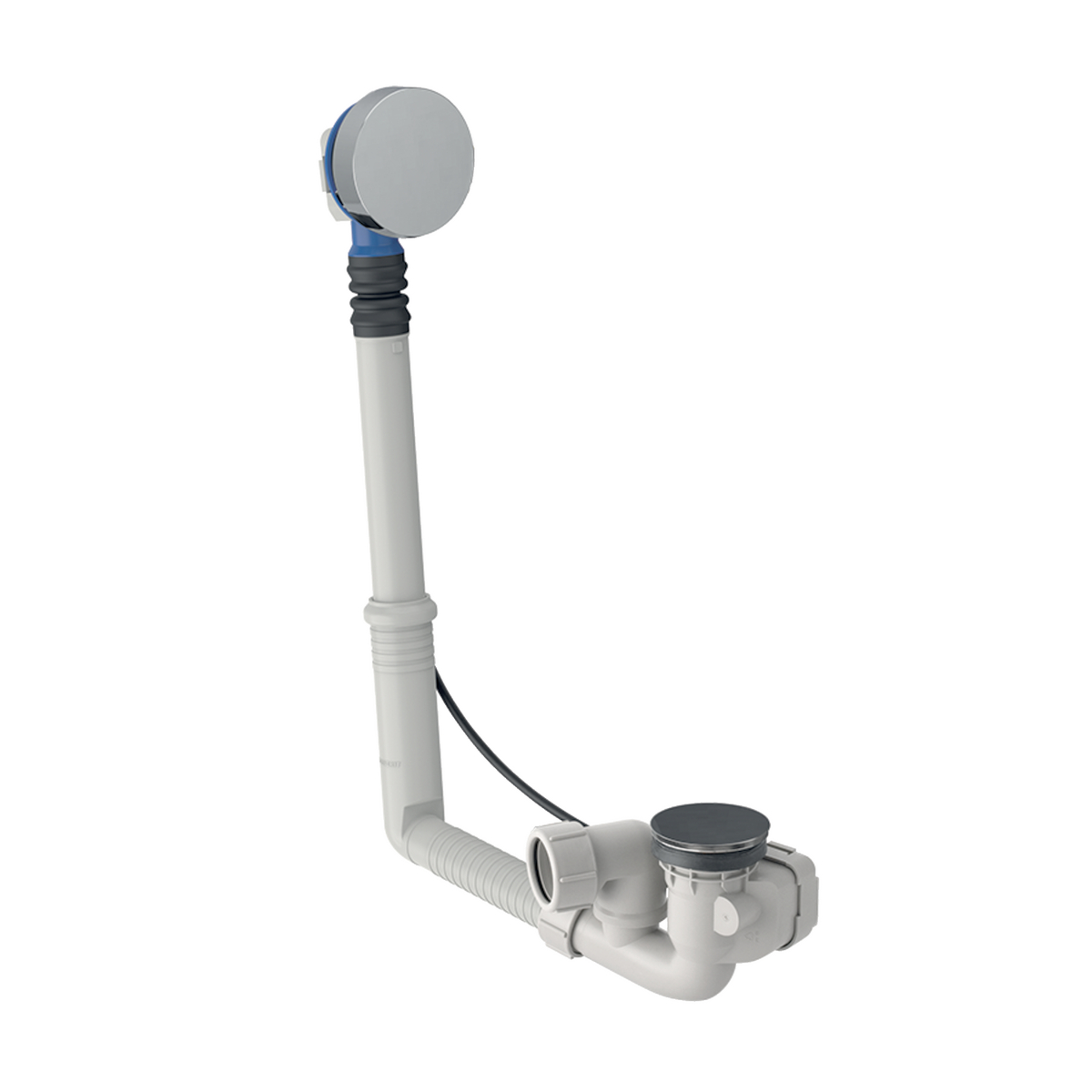

Geberit bathtub siphon with rotary drive, d52, length 28 cm, with finishing accessories, counterflow principle
Without delivery
Standard size tub
Description
The Geberit bathtub column without inlet is a complete and sophisticated solution for the effective evacuation of water from the steel, synthetic or cast iron bathtub with a Ø 52 mm waste hole, combining functionality and elegant design.
Featuring a twist-action opening and closing of the drain plug, offering intuitive and comfortable water management.
The system is based on the counterflow principle, which guarantees a high drainage capacity (0.8 l/s) and overflow (0.6 l/s), preventing stagnation and ensuring a 50 mm hydraulic seal to block unpleasant odours.
The polished chrome finish of the waste and exposed accessories adds a touch of refinement, while the polypropylene (PP) construction for the hidden parts ensures durability and resistance.
Datasheet
• Column or bathtub siphon without spout (therefore plan to install a wall-mounted tap or mixer with spout)
• For bathtubs made of steel, synthetic material or cast iron
• For standard size bathtubs
• For bathtubs with a waste hole of ø 52 mm
• Seals on both sides of drain and overflow
• With overflow
• Complies with EN 274
• Overflow capacity 0.6 l/s
• Hydraulic closing height 50 mm

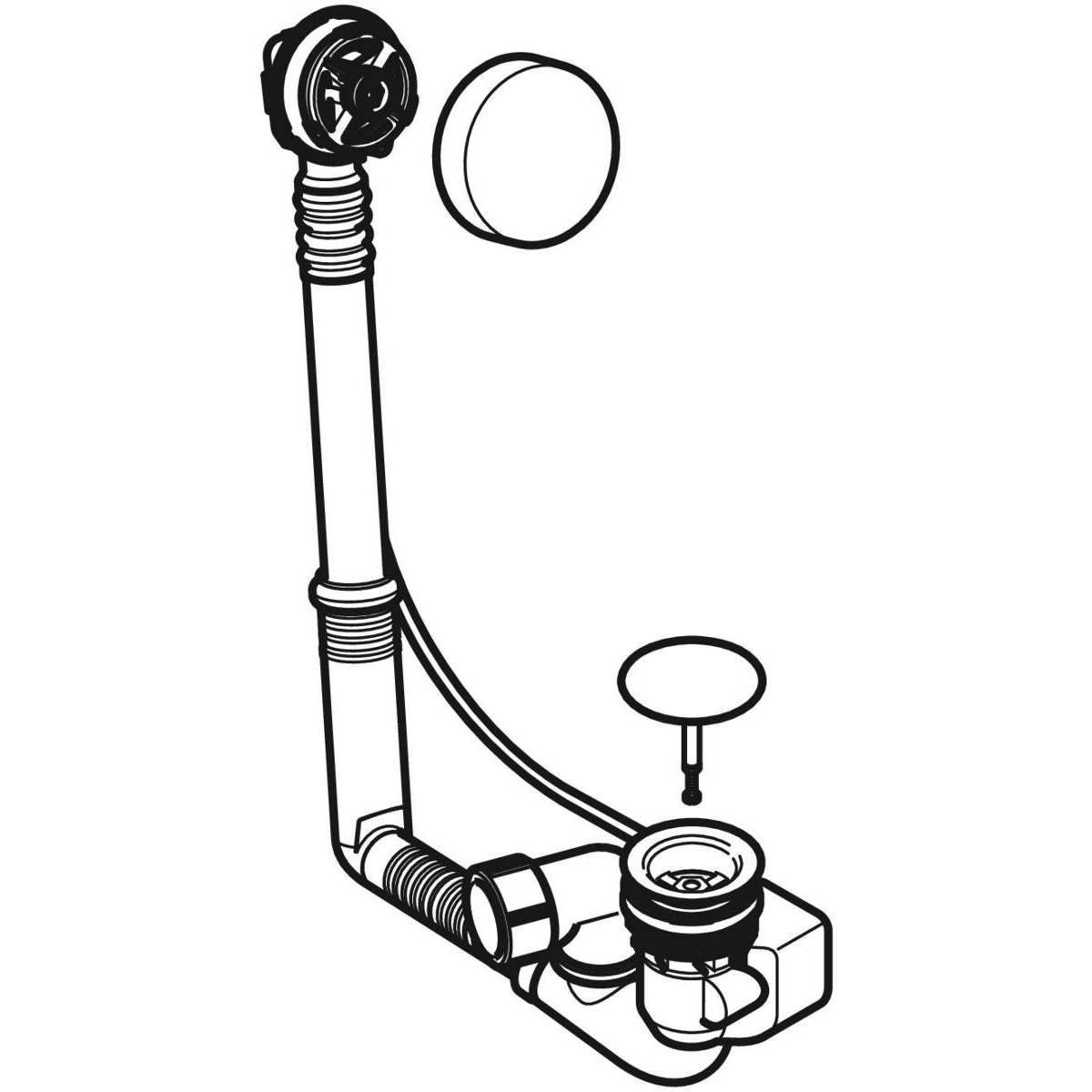

Package Contents:
• 1 Drain plug
• 1 Siphon
• Construction site protection
• Completion accessories
• Fixing material
Other installation accessories to be ordered separately
