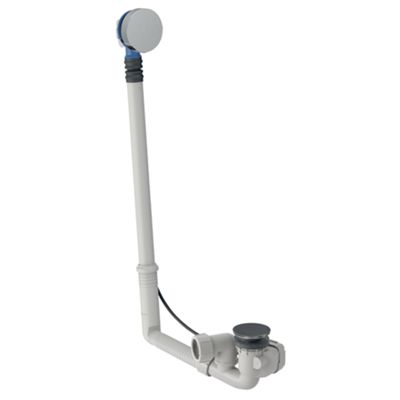

Geberit bathtub siphon with rotary drive, d52, length 28 cm, with finishing accessories and vertical extension, counterflow principle
Without delivery
Special size tubs
Description
The Geberit bathtub column without inlet is a complete and sophisticated solution for the effective evacuation of water from the steel, synthetic or cast iron bathtub with a Ø 52 mm waste hole, combining functionality and elegant design.
Featuring a twist-action opening and closing of the drain plug, offering intuitive and comfortable water management.
The system is based on the counterflow principle, which guarantees a high drainage capacity (0.8 l/s) and overflow (0.6 l/s), preventing stagnation and ensuring a 50 mm hydraulic seal to block unpleasant odours.
The polished chrome finish of the waste and exposed accessories adds a touch of refinement, while the polypropylene (PP) construction for the hidden parts ensures durability and resistance.
Datasheet
• Column or bathtub siphon without spout (therefore plan to install a wall-mounted tap or mixer with spout)
• For bathtubs made of steel, synthetic material or cast iron
• For special size bathtubs
• For bathtubs with a waste hole of ø 52 mm
• Seals on both sides of drain and overflow
• With overflow
• Complies with EN 274
• Overflow capacity 0.6 l/s
• Hydraulic closing height 50 mm
Package Contents:
• 1 Drain plug
• 1 Siphon
• Construction site protection
• Completion accessories
• Fixing material
Other installation accessories to be ordered separately
