Description

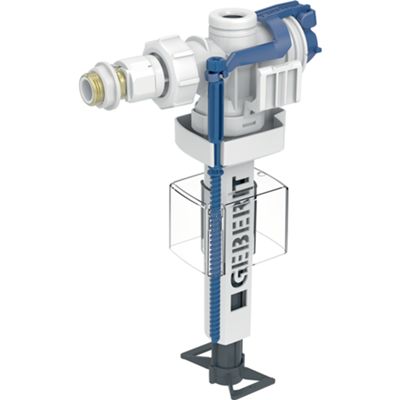

Geberit float valve type 383, side water connection, 3/8", brass spigot (compatible cistern models can be found in the enclosed instructions)
Datasheet
• For installation in external flush cisterns with lateral water connection
• For ceramic flush cisterns
• For drinking water
• For 3/8'' water connections
• Adjustable filling height
• Brass nozzle
• Lateral water connection
• Noise level according to valve group I (DIN 4109)
• Dynamic pressure 0.1–10 bar
• Tap noise at 3 bar 7 dB(A)
• Tap noise at 5 bar 13 dB(A)
• Storage temperature ≤ 40 °C
• Max water temperature 25°C
• Flow rate at 0.5 bar 0.06 l/s
• Flow rate at 3 bar 0.16 l/s
• Minimum dynamic pressure 0.1 bar
• Design flow rate 0.09
Package Contents:
• 1 float type 380 with 3/8 connection
Any installation accessories not mentioned must be ordered separately.
