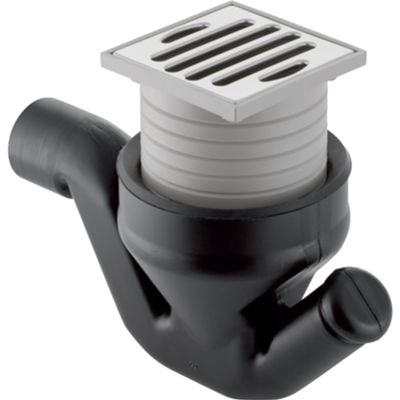

Connection to Geberit floor drain, diameter 50 mm, with PP inlet funnel (lateral) with diameter 40, slotted grate 10 x 10 cm








Description
Versatile and robust HDPE floor drain for wastewater management, designed for a variety of installations. With a 50 mm main drain connection and a 40 mm PP side inlet, it offers flexible connection options for sanitary fixtures.
Its 50 mm hydraulic seal prevents unpleasant odors from rising. With a flush flow rate of 0.6 l/s, it ensures efficient water evacuation.
This siphon is suitable for installation inside buildings and is ideal for use on balconies, terraces, and swimming pools (both indoors and outdoors). It comes with all the necessary components for installation, including construction site protection.
Datasheet
• For connecting sanitary appliances
• For installation inside buildings
• Hydraulic closing height 50 mm
• PE-HD material
• Complies with EN 1253
• Height adjustable with extension
Package Contents:
• 1 Stainless steel grill
• 1 Siphon
• 1 Construction site protection
Further installation accessories such as floor drain funnel extension 10 x 10 cm, screw-on cover, with sealing cap to be ordered separately
