Description
Pre-insulated ML multilayer pipe designed for high-performance applications in a wide range of systems, both civil and industrial (cold and hot drinking water supply systems, heating and cooling circuits (including antifreeze), rainwater and seawater management, fire-fighting systems, and the transport of technical fluids, chemicals, compressed air, and inert gases in civil, industrial, and naval contexts).
The pipe is pre-insulated with a 6 mm thick polyethylene (PE) sheath, compliant with current regulations, which offers a thermal conductivity of 0.040 W/(m·K).
This item fits the Geberit FlowFit system and is supplied in 50-metre rolls.
Datasheet
• Shape stability
• Hand foldable
• Tube impermeable to oxygen diffusion
• Silver grey outer surface of the tube
• Closed cell insulation, blue protective film
• HCFC-free and HFC-free insulation
• Tube end with transparent protective cap
• Material PE-RT II/Al/PE-RT II
• Surface roughness 7 µm
• Thermal expansion 0.026 mm/(m·K)
• Thermal conductivity of the tube 0.41 W/(m·K)
• Insulation material Soft PE foam
• Thermal conductivity of insulation 0.04 W/(m·K)
• Resistance to water vapour diffusion of insulation coating 7000 µ
Package Contents:

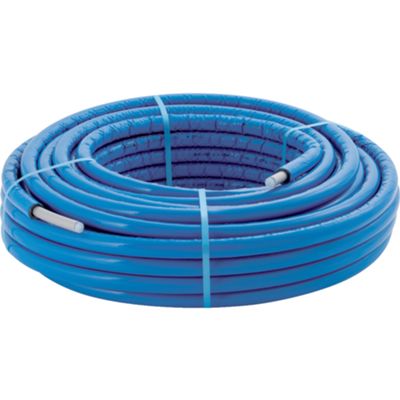

• 1 roll of 50 m of 6 mm insulated tube Ø 20 x 2 mm
