Description

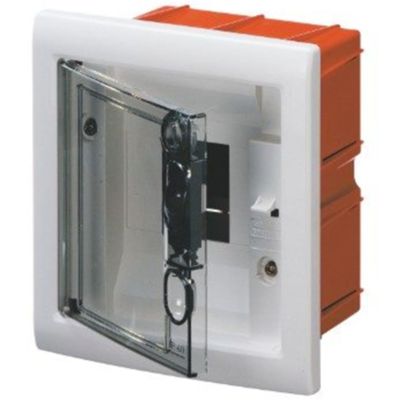

The Gewiss GW40602 is a flush-mounted switchboard designed to accommodate up to 4 DIN modules, made of thermoplastic material, it is halogen-free and offers an IP40 protection rating, making it suitable for indoor installations.
The DIN rail is fixed directly to the bottom of the switchboard, facilitating the installation of modular devices.
The product is supplied complete with flush-mounting box, module covers and user labels.
Datasheet
• Number of modules 4
• Degree of protection IP40
• Halogen-free thermoplastic material
• White color
• Dimensions (W × H × D) 120 x 160 x 85 mm
• DIN rail included, fixed directly to the bottom
• Operating temperature -15 °C ÷ +60 °C
• Dissipatable power 18 W
• Insulation class II
• Thermo-pressure with ball 70 °C
• Equipment: module cover masks, user labels
• Compatibility with modular devices with DIN connection
