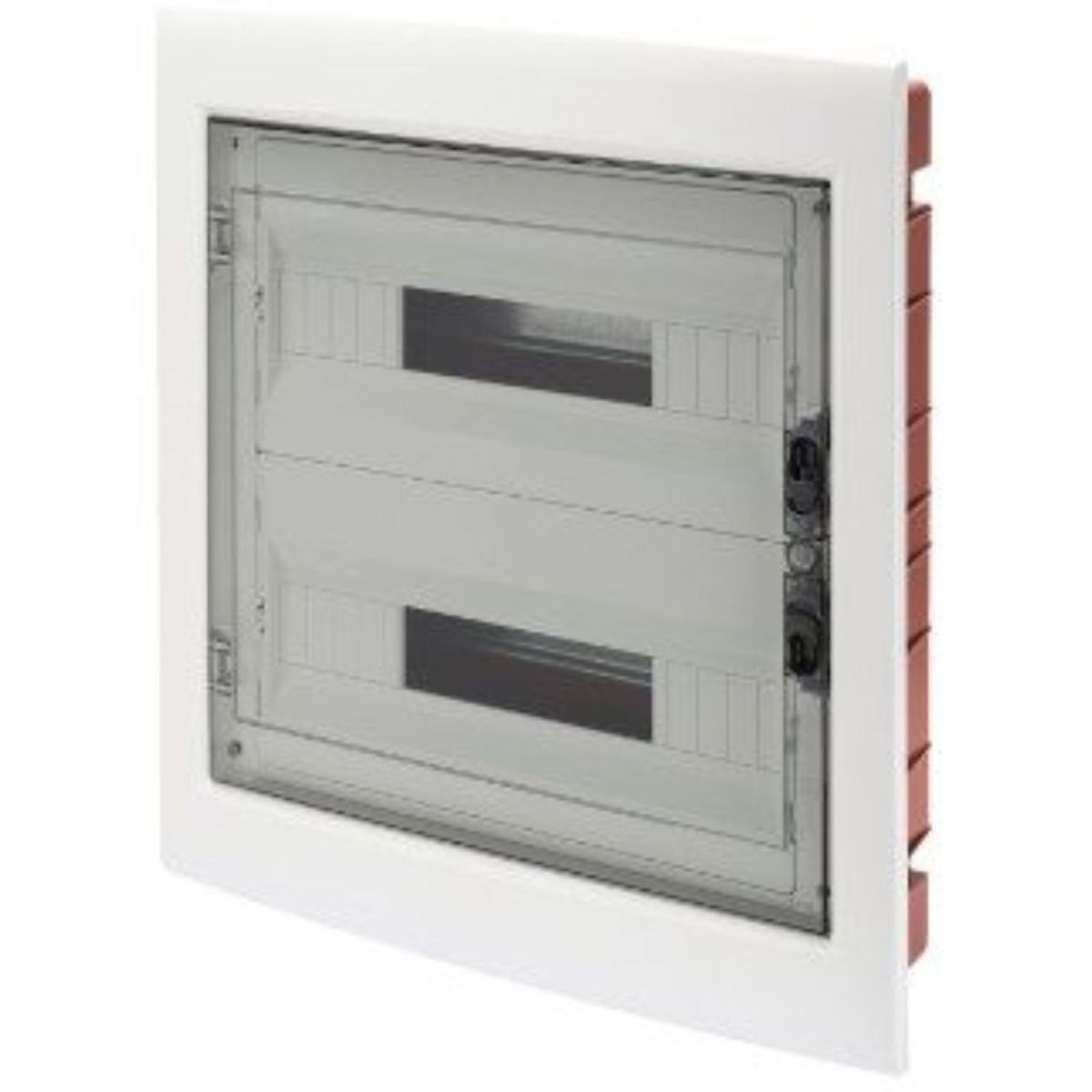

Gewiss GW40609 - built-in switchboard 36M 40 CDKI

Gewiss GW40609 - built-in switchboard 36M 40 CDKI

SKU: GEWGW40609
Barcode: 8011564062511
Brand: Gewiss
Built-in switchboard with extractable frame and transparent smoked door, suitable for masonry installations up to 36 modules (18x2), with IP40 protection rating
You save -5%
€66.74pcs
€70.25pcs
You save €3.51pcs Promotion active until 27 September
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

Flush-mounted distribution board belonging to the 40CDKI series, designed for residential and tertiary applications.

Made of halogen-free thermoplastic material, it offers IK08 impact resistance and a glow wire resistance of 650°C.

The removable frame facilitates installation and maintenance of modular devices.

The smoked transparent door allows for easy visual inspection of internal components.


Datasheet

• Number of modules 36 (18x2)

• Degree of protection IP40

• IK08 impact resistance

• Halogen Free Thermoplastic Material

• Colour white RAL 9016

• Transparent smoke door color

• External dimensions (W × H × D) 465 × 505 × 85 mm

• Installation for masonry

• Removable frame

• Rated voltage 400 V

• Rated current 125 A

• Dissipatable power 52 W

• Operating temperature from -15 °C to +60 °C

• Glow wire resistance 650 °C

• Insulation class II

Properties

Cerifications:
Electrical expert
C E
IMQ
