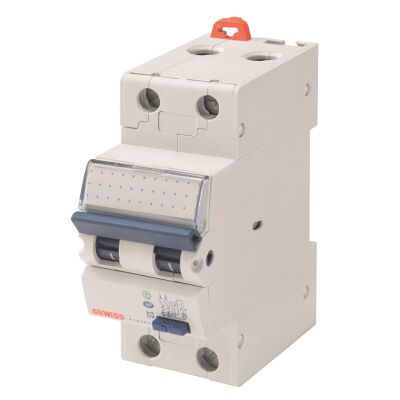

Compact monobloc residual current circuit breaker 2P C20 0.03A AC 2M
Description
Gewiss compact monobloc differential magnetothermic modular switch MDC 60 series 2P C20 Idn 0.03A instantaneous AC type.
Datasheet
Technical specifications:
• No. of 2P poles
• Rated current 20A
• Idn 0.03A
• AC type
• Nominal voltage 230V
• Compatibility with YES electrical auxiliaries
• Compatibility with ReStart SI
• No. of EN50022 modules 2
Certifications:
• THERE IS
Properties
Producer:
Gewiss
No. poles:
2P
Rated current:
20A
Type:
AC
Curve:
C
Breaking power:
6000A
Idn:
30mA
Cerifications:
