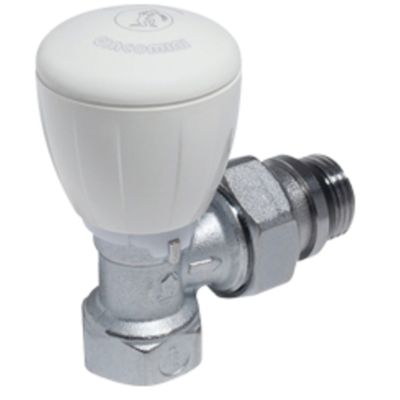

Thermostatic micrometric valve, square, with R421TG iron pipe connection for 1/2
Description
Thermostatic micrometric valve, square, chromed, with iron pipe connection, body and main components: brass UNI EN 12165 CW617N, chromed.
Monobloc control rod: stainless steel, manual handwheel: ABS. Seals: EPDM. Fluids for use: water and glycol solutions (max. 30%), temperature range 5÷110 °C, maximum operating pressure: 16 bar with construction site protection handwheel; 10 bar in combination with thermostatic heads. Maximum differential pressure with thermostatic heads 1.4 bar (3/8” - 1/2”); 0.7 bar (3/4”); 0.4 bar (1”), combinable with the R460, R468, R468C, R470 series thermostatic heads (Clip-Clap quick connection). KEYMARK certification (EN215) from 3/8" to 1/2".
Datasheet
Certifications:
• THERE IS
