Description

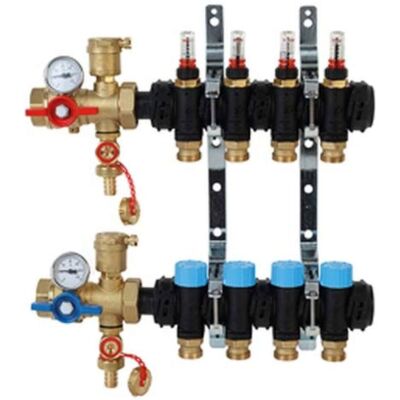

Pre-assembled manifold kit in technopolymer, for air conditioning systems and with flow meters (0.5÷5 l/min), connections for copper, plastic or multilayer pipe adapters and center distance between outlets of 50 mm.
Temperature range 5÷60 °C and maximum operating pressure 6 bar (10 bar for system testing).
Composed of:
– 1 technopolymer delivery manifold with flow meters (double scale: 0.5÷5 l/min and 0.15÷1.5 GPM) with fluid regulation/interception function;
– 1 technopolymer return manifold with shut-off valves with manual handwheel, set up for electrothermal control using the R473/R473M actuators, which can be installed after assembling the specific R453FY002 ring nut (included in the package);
– 2 R269T multifunction valves;
– R588ZP metal supports.
Datasheet
Certifications:
• THERE IS
