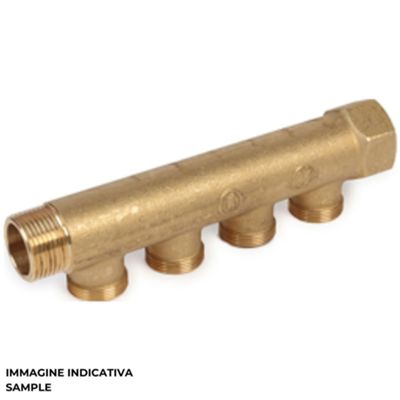

Brass sanitary water manifold with 3 connections
3/4 collector inlet and outlet measurement
Base collector output measurement 16
Description
Simple modular manifolds for sanitary systems are the reliable and versatile solution for managing and distributing heat transfer fluid or water in various types of systems.
Its compact structure is ideal for installation in distribution boxes or in restricted spaces and its modularity allows you to create a customized manifold based on the system's needs.
Datasheet
• Connections for copper, plastic or multilayer pipe adapters with 16 base
• Collector body: brass CW617N - UNI EN 12165
• Shutter: brass CW614N - UNI EN 12164
• Temperature range 5÷110 °C
• Maximum operating pressure 10 bar
• 3/4" manifolds with 35 mm outlet centre distance
• Fluid used: water, glycol solution (max. 30% glycol)
Package Contents:
• 1 Simple brass manifold 3/4 x 16 x 3 connections
Adapters, end caps, ball valves and containment box and everything needed to complete the manifolds and the system to be ordered separately
