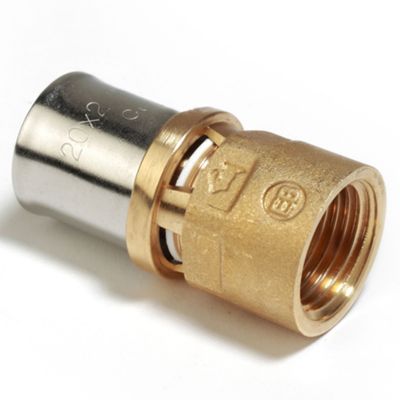

Giacomini RM109Y076 - straight fitting female threaded 1 1/2 x (40 x 3.5)

SKU: GCMRM109Y076

Brand: Giacomini

Female threaded straight fitting, multi-clamp press fitting 1"1/2 x (40 x 3.5)

€27.24

Other supplier availability Other supplier availability Other supplier availability Other supplier availability

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

verified 2 years warranty sync Easy return within 14 days shopping_cart Buy with tax benefits

Description

Straight female threaded fitting, multi-clamp press fit and body in stamped brass from Ø 16 to 63 mm in cast brass from Ø 75 to 90 mm for plastic or multilayer pipes.

Double black EPDM sealing O-Ring for hydraulic systems and AISI 304 stainless steel compression sleeve.

Pressing profile TH, H, U for Ø 16, 20, 32 mm - TH, H for Ø 26 mm - TH, U for Ø 40, 50 mm - TH for Ø 63 mm - U for Ø 75, 90 mm.

Temperature range 5÷110 °C and maximum operating pressure 10 bar.

Datasheet

• Body in forged brass CW617N - EN 12165 (from Ø 16 to 63 mm); in cast brass CC770S - EN 1982 (from Ø 75 to 90 mm)

• Double black EPDM sealing O-ring, compliant with EN 681-1 standard

• Maximum percentage of glycol diluted in water: 50%

• Compression sleeve in stainless steel AISI 304

• Temperature range: 5÷110 °C

• Maximum operating pressure: 10 bar

Downloads

attachment

Specifiche tecniche (IT)

(4,668 KB)

Properties

Pressing profile:

Cerifications:

Thread:

Figure:

Straight fitting

Dimension:

DN 40

1"1/2

Material:

Brass

Type of joint:

Threaded

To press
