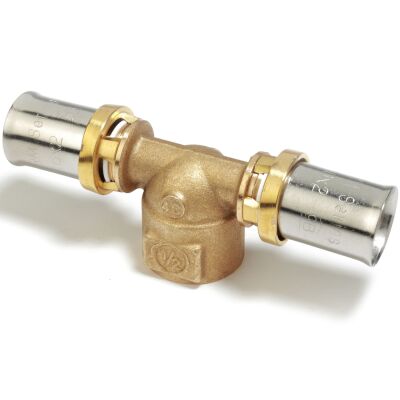

Female threaded tee, multi-clamp press fitting 3/4" x (26 x 3)
Description
Female threaded T-fitting, brass multi-clamp press fitting for plastic or multilayer pipes.
Double black O-Ring seal in EPDM for hydraulic systems and compression bushing in AISI 304 stainless steel.
Pressing profile TH, H, U for Ø 16, 20, 32 mm - TH, H for Ø 26 mm - TH, U for Ø 40, 50 mm - TH for Ø 63 mm.
Temperature range 5÷110 °C and maximum operating pressure 10 bar.
Datasheet
• Body in stamped brass CW617N - EN 12165
• Double black EPDM O-Ring seal compliant with EN 681-1 standard
• Maximum percentage of glycol diluted in water: 50 %
• Compression sleeve in AISI 304 stainless steel
• Temperature range 5÷110 °C
• Maximum operating pressure 10 bar
Downloads
Properties
Pressing profile:
H
TH
Cerifications:
Thread:
F
Figure:
T fitting
Dimension:
DN 26
3/4"
Material:
Brass
Type of joint:
Threaded
To press
