Ø 60 aluminium pole lamp with transparent diffuser and anti-glare grid, designed for G23 lamp up to 11 W
Description

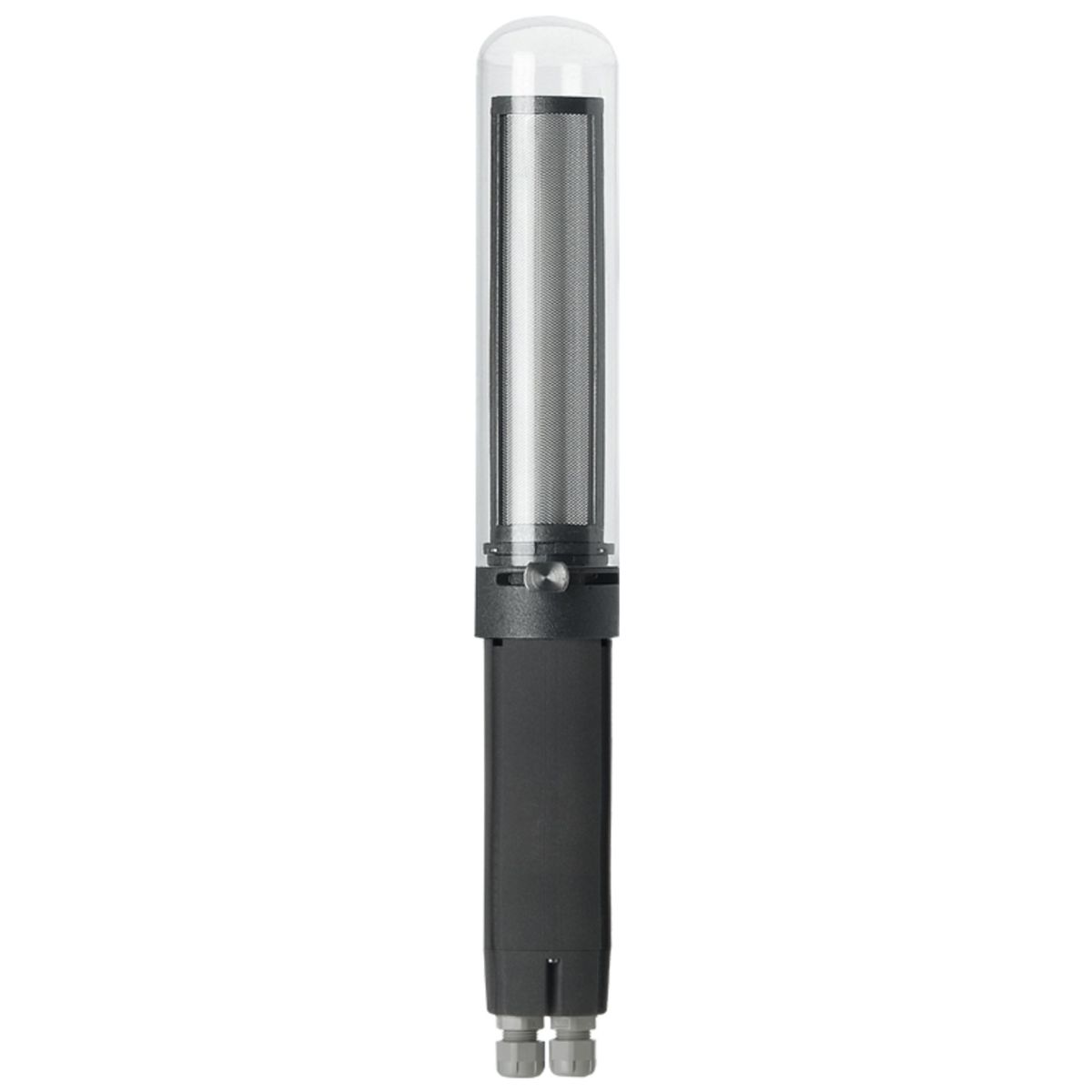

The I-Lux 5504IN model is an outdoor lighting fixture to be mounted on a Ø 60 mm pole, made of aluminium and with a transparent dome complete with adjustable internal grid to limit glare.
It is compatible with G23 lamps up to 11 W and has output cables passing through a cable gland.
The structure is designed to last in outdoor environments, with materials resistant to corrosion and sun.
Datasheet
• Structure material: aluminum
• Anthracite color
• Installation on Ø 60 mm pole
• IP 65 protection rating
• Impact resistance IK09 (10 J)
• Insulation class Class II
• Lamp type G23
• Maximum power 11 W
• Lamp not included
• Power supply 230 V ~ 50/60 Hz
• Cable type H05 RN-F (section 4–8 mm²)
• 2 cable glands for cable entry
• Base diameter Ø 60 mm
Properties
Cerifications:
